Assigning Cross Sections
Shows step by step how to assign a cross section to selected pipeline corridor segments.
Before you begin
You have designed pipeline corridors with estimated space requirements and now you would like to assign given cross sections to them.
Requirement:
You defined at least one pipeline corridor cross section.
Navigate to:
Procedure
- Click Assign cross section <.
- Select the pipeline corridors to which you would like to assign a cross section. Confirm your selection with Enter.
The Cross sections dialog opens.
- Select the cross section you would like to assign to the pipeline corridor and click OK.
Results

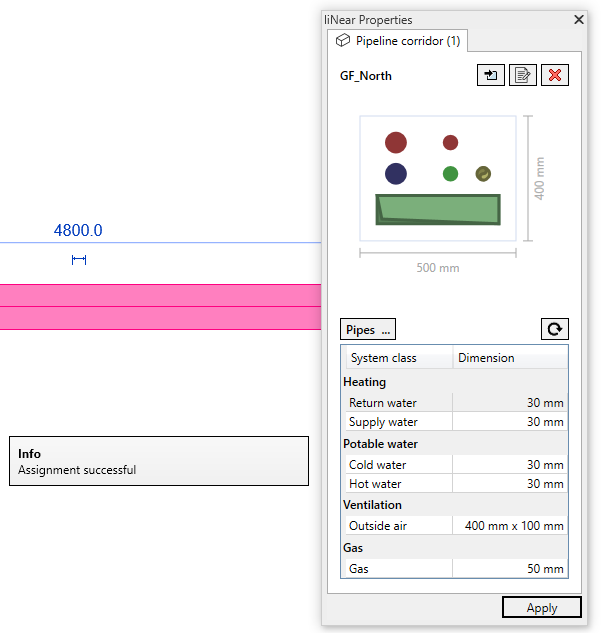

A confirmation is displayed and the desired cross section is assigned to the selected pipeline corridor segment. You can check the assignment in the LINEAR properties.
