Details on Configure Export Parameters

Details about the Configure export parameters section in the labeling dialog.

You are here:

Project tab ➤ Discipline ➤ Analyse tab ➤ Labeling... ➤ Configure export parameters

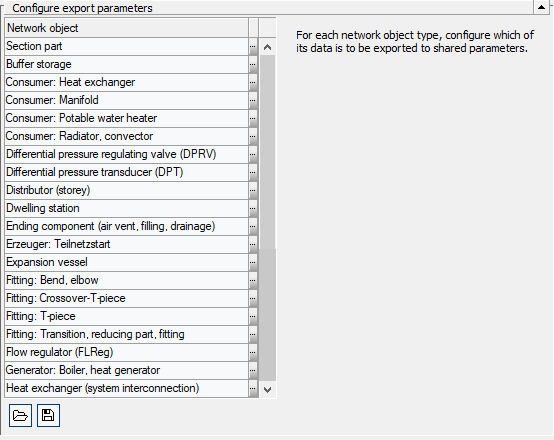

Elements in the Configure export parameters section


Element	Function
Network object column	Lists all network objects whose parameter can be exported into shared parameters.
Configure parameters for export	Opens the Configure export parameters dialog in which you can select parameters to be exported in shared parameters for each network object.
Load parameter selection	Opens the file explorer to load another configuration in LABX format
Save parameter selection	Opens the default folder to save the current configuration as a template: ...\CAD\<Discipline>\User-standards\Labels Revit\20xx
