Configuring Pipes of a Pipe Run

Shows step by step how to configure the pipes of a pipe run in the discipline Potable Water.

Before you begin

You want to configure the used pipes of a pipe run in the scheme generator for potable water.

Requirement:

Your project has at least one storey so that the required pipe run button is visible in the scheme generator.

Navigate to:

Project - tab ➤ Discipline ➤ Planning type 2D Scheme Planning ➤ Create - tab ➤ Storeys and Generators ➤ Scheme Generator, Potable water ...

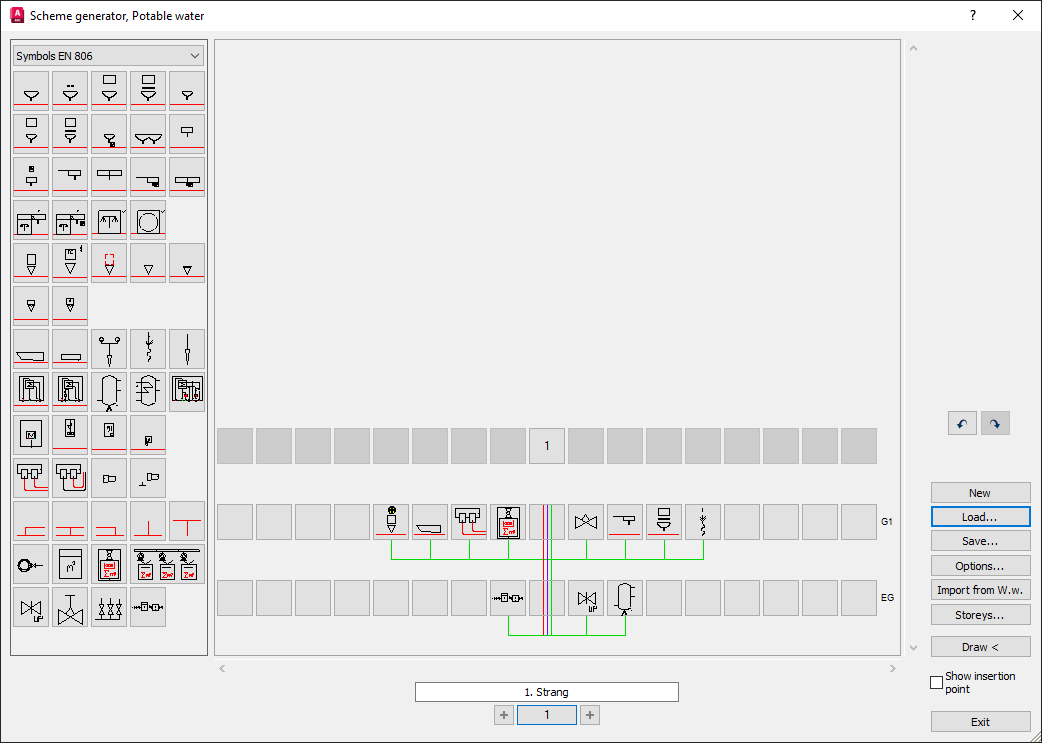

Scheme planning Potable Water Linear AutoCAD Scheme generator

Procedure

Click on the pipe run button of a storey.

The following context menu opens.

The media Cold water, Hot water and Circulation are preset in new projects and marked with a check mark .
If necessary, deselect the media that you do not need in this pipe run.

Results

You have set the pipes of the pipe run and the media are shown on the pipe run button .
