Installing Valves in a Pipe
Shows step-by-step how to insert valves from the available manufacturer catalogs into an existing pipe.
Before you begin
You want to install valves, e.g. shut-off valves, non-return valves, mixers, etc., in your pipe network.
Navigate to:
Applies to: Heating/ Cooling, Potable Water, Waste Water, Gas, Fire Protection
Procedure
- Click the button Install valve <.

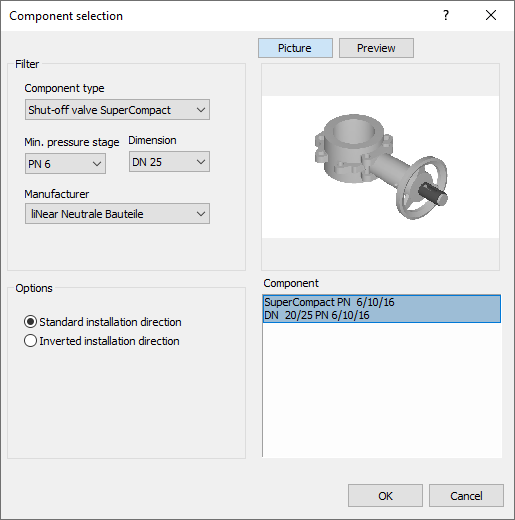

The dialog Component - Selection opens.
- Use the fields Component type, Min. pressure rating, Dimension and Manufacturer to select the valve. Note: The valves from the manufacturer catalogs that you have installed and licensed are displayed.
- Optional: Select an installation direction under Options.
- Optional: Under Component, select the desired component model.
- Close the dialog with a click on OK.
- Click to select the pipe into which you want to insert the valve.
- Optional: Right-click to open the context menu to enter an alternative insertion point or to rotate the fitting before inserting it.
- Determine the position for the valve with a click or alternatively by entering the distance to the pipe end or pipe axis using the keyboard and then pressing Enter. Note: To enter the distances manually using the keyboard, the dynamic input must be active in AutoCAD.
Results
The valve has been inserted into the pipe at the specified point.
