Details on Manifold - Data

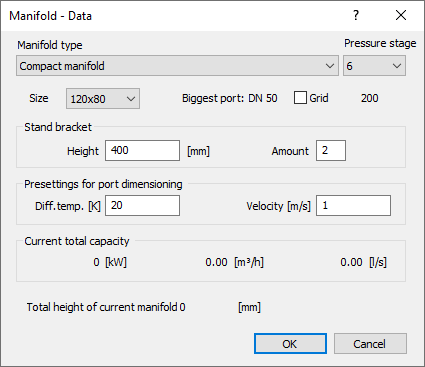

Details on the dialog Manifold - Data.
You are here:
Manifold type: Select a manifold type from the drop-down list.
Pressure stage: Select a Pressure level for the set manifold.
Size: Select the size of the manifold.
Largest port: Shows the nominal diameter of largest port. The nominal size of the largest port depends on the Type of manifold and the selected Size.
Grid Enabled - The given grid is used.
Standing brackets: Enter the height and the number of the standing brackets.
Presettings for port dimensioning: Set the Differential temperature [K] and the Velocity [m/s] as default.
Current total capacity: This area displays the calculated total capacity of the manifold.
Total height of current manifold: This area displays the calculated total height of the manifold.
