Details on Options
Information about the dialog Options in scheme generator for the trade Heating.

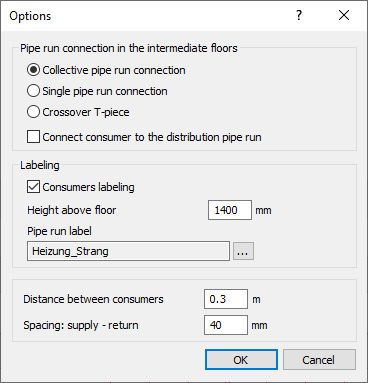

Clicking the Options button opens the dialog of the same name, where you can make general presettings for the schema construction. The settings apply to the whole project.
You are here:
Pipe run connection in the intermediate floors
Defines how the pipes are connected to the pipe run.
| Type of pipe run connection | Construction in drawn scheme |
|---|---|
| Collected pipe run connection |  |
| Single pipe run connection |  |
| Connection with crossover T-piece |  |
Labeling
Specifies the labeling parameters for the pipe runs.
Label consumer
Enabled: The consumers are labeled.
Height above floor
Sets the vertical position of the label in the scheme.
Pipe run label
: Opens the Show pipe run label dialog, which allows you to specify the label to use. You find the provided label files in the following directory: C:\Program Files (x86)\LINEAR Software\Solutions xx\CAD\ TGA Desktop\User-standards\Labels.
Distance between consumers
Sets the clear distance between the consumers in the scheme.
Distance Supply water - Return water
Determines the distance between the supply and return pipes in the scheme.
