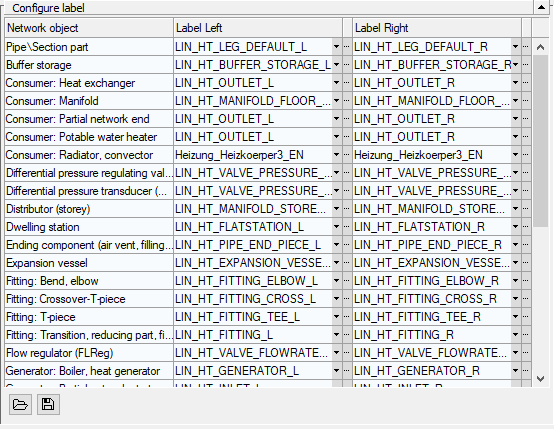

Details on Configure Label

Network object

Lists all network objects which can be labeled in this discipline.

Label Left/Label Right

Shows the currently set label for the respective network object. The labels in the Label left column contain right-justified text for left-hand labels, and the labels in the Label right column contain left-justified text for right-hand labels.

Label option for the network object

Opens a drop-down list to specify the label used with the following options:

• <create automatically>

  The component is labeled according to the settings defined in the Configure Labeling Parameters - (...) dialog. The label is created automatically.

• <select file...>

  Opens the file explorer to select labeling files.

• <create file...>

  Opens the Configure labeling parameters - (...) dialog where you specify the settings for the label to be created. The label file should then be saved in the following folder: …\User-standards\Labels. In this way, you can also use the label in other drawings.

Configuring the selected labeling option

Opens the Configure labeling parameters - (...) dialog where you can adjust the labeling settings.

Load configuration

Opens the file explorer to load another configuration. The file should be in labx format and should be located in the default labeler directory (...\User-standards\Labels).

Save configuration

Opens the File Explorer to save the current configuration in the default folder (...\User-standards\Labels). The current parameter selection and all formatting are saved. This way, you can create different templates for different projects, share them with colleagues, and reuse them as needed.
