Placing Riser Symbols

Shows step-by-step how to place corresponding symbols on existing risers in a floor plan.

Before you begin

You want to mark the risers with riser symbols in floor plans for forwarding the plans to the implementation planning.

Requirements:

The current view is a top view and contains all risers that you want to mark with symbols.

Navigate to:

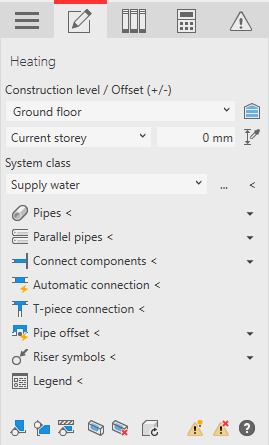

Project tab ➤ Discipline ➤ Construction tab

Applies to: Heating, Cooling, Potable water, Waste water, Gas.

Procedure

Open the Riser Symbols section, if necessary.
Activate the Apply system color option if the symbols are to be placed in the system colors of the respective riser.
Activate the Fix to pipe option if the position of the symbols is to be linked to the pipe position and the symbols are expected to be updated.
Click Riser symbols < and follow the instructions of the program.

Results

The riser icons are placed with the selected options.
