Details on Pump Selection/Pump Catalog

Information on the dialogs Pump Selection and Pump Catalog in the pipe network calculation.

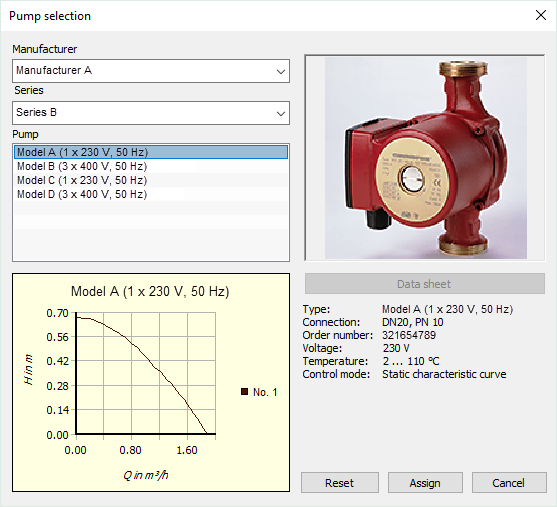

Pump Selection

You are here:

Project tab ➤ Discipline ➤ Analyse tab ➤ Pumps

Applies to: Heating, Cooling, Potable water.

Select a manufacturer pump and assign its data to the pumps in the model.

Manufacturer

Here, all manufacturers are available, whose data sets have been installed and, if necessary, have been licensed.

Series

Here all series are available, that are contained in the selected manufacturer data set.

Pump

Here, all models of the selected series are available.

Diagram

The graph shows the characteristics of the selected model.

Data sheet

If the manufacturer provides a data sheet in the data set, you can view it here.

Reset

Use this function to reset already assigned manufacturer data of a pump to neutral values. The delivery height and the flow rate of the pump are calculated and no manufacturer is given out.

Assign

Use this function to assign manufacturer data to a pump, which are used for calculation and in the material lists.

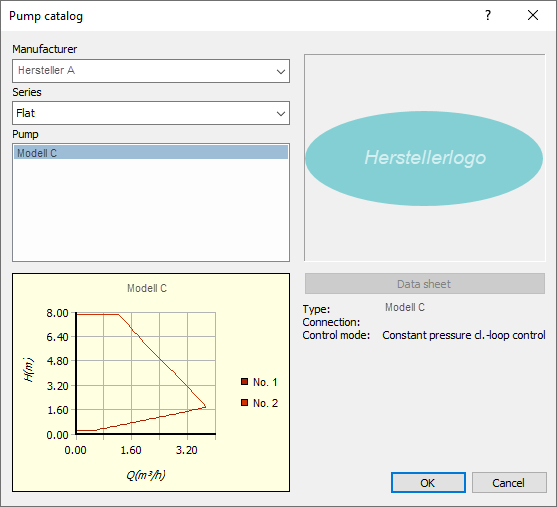

Pump catalog

You are here:

Project tab ➤ Discipline ➤ Analyse tab ➤ Components ➤ Technical data ➤ Component ➤ Info (Pumps)

Applies to: Heating and Potable Water.

Get information about the pumps installed in the component.

Manufacturer, Series, Pumps

Displays the manufacturer, series and model of the pump.

Diagram

Shows the characteristic curve of the room pump.

Data sheet

If the manufacturer provides a data sheet in the data set, you can view it here.
