Details on Item Selection

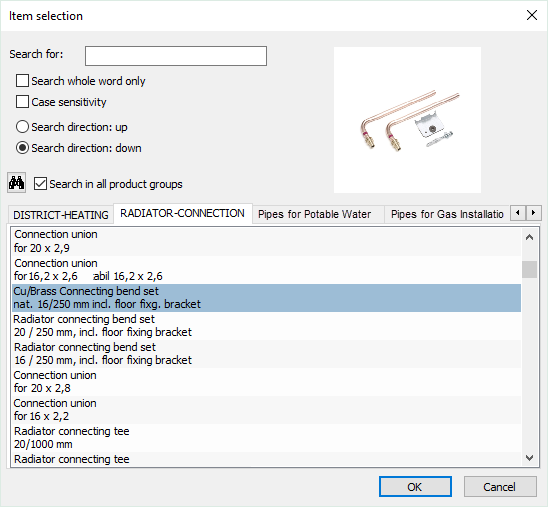

Information on the Item selection dialog in pipe network calculation.

You are here:

Project tabDiscipline Heating Analyse tabComponentsConnections ... <Define connection...Select radiatorAdd

The material of the manufacturer selected under Product data, are provided in different product groups (tabs).

Element

Meaning

Search for:

Enter a search term.

Search whole word only

Activated: Enter the whole word for the search term. Terms which contain only a part of the search term, will not be found.

Deactivated: You can enter a part of the search term.

Case sensitivity

Activated: The search term is case sensitive.

Search direction: up

When searching, the entries above the marked item are checked.

Search direction: down

When searching, the entries below the marked item are checked.

Search item

Starts the item search using the settings made above.

Search in all product groups

Searches the item within all tabs.
