Details on Azimuth and Elevation Angle

Information on the Azimuth and elevation angle dialog for in the Configuration for the short procedure of the cooling load.

You are here:

Menu bar ➤ Options ➤ Configuration ➤ Cooling load short proc. ➤ Sun position...

Table

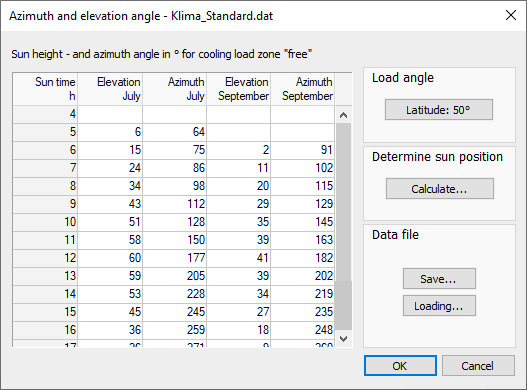

If norm deviating specifications are required for the building, you can adjust the requested values for elevation and azimuth in the respective consideration months at this point.

Load angle

Latitude 50 °: Fills the table with values from VDI 2078. The current configuration can be saved before.

Determine sun position

Calculate...: Opens the Azimuth and Elevation Angle dialog where you can enter user-defined values for building location and consideration months.

File

Save...: Saves the current configuration of the table in DAT format. Use an own file name in order to not overwrite the default configuration.
