Details on Direct and Diffuse Radiation

Information about the Direct and diffuse radiation dialog in the Configuration for the short procedure of the cooling load.

You are here:

Menu bar ➤ Options ➤ Configuration ➤ Cooling load short procedure ➤ Solar radiation...

Table

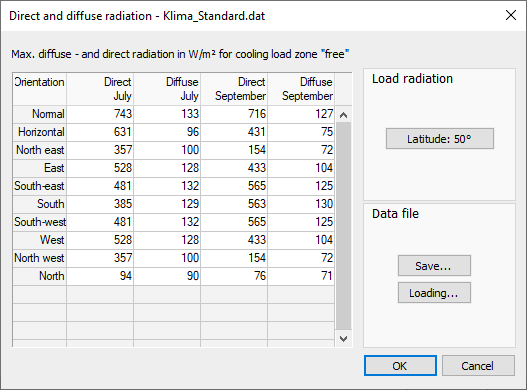

If deviating specifications are required, you can enter the requested values for direct and diffuse radiation at this point.

Load radiation

Latitude 50 °: Fills the table with values from VDI 2078. The current configuration can be saved before.

File

Save...: Saves the current configuration of the table in DAT format. Use an own file name in order to not overwrite the default configuration.

Load...: Loads a configuration saved in DAT format.
