Details on Storey Level/Storey Data

Information about the General tab at the storey level of the building structure and the Storey data dialog.

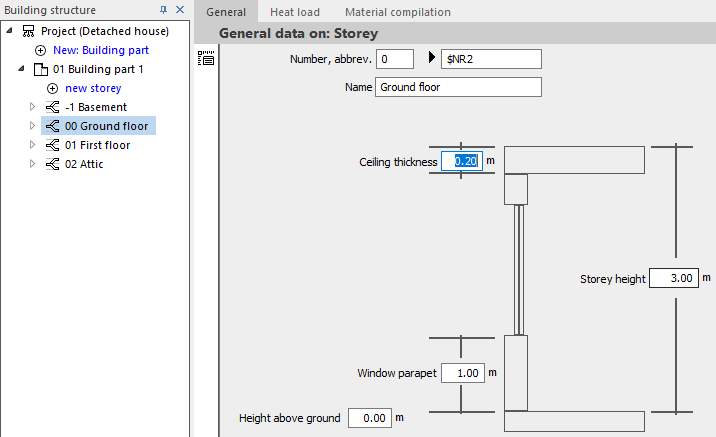

For a storey, besides the number, abbreviation and name, the storey height, ceiling thickness and parapet height are also used as default values for rooms. If required, you can adjust the preset values in the General data on: Storey or in the Storey data dialog.

You are here:

Building structure ➤ Storey level ➤ General

or

Building Structure ➤ Storey level ➤

Number

Is used to identify the structural level and simultaneously for sorting in the tree structure. The number may only appear once on the respective structural level.

Abbreviation

May contain a text and/or a variable. Available variables:
  • one to three digit numbers
  • Numbers and abbreviations of superordinate levels
In the corresponding context menu, predefined variables are () available for selection.

Name

Free text to be entered for this structural level.

Storey dimensions

Ceiling thickness: The thickness of the storey ceiling in meters.

Storey height: Height of the storey in meters. This value is also used for vertical room components such as walls. Modifications in the storey height have an effect on all affected room components of the storey.

Parapet height: Parapet height of this storey in meters. The value entered here is taken as the initial value for the parapet height in the rooms on this storey and specifies the height of the radiators in the radiator dimensioning, assuming no deviating settings have been made in the Dimensioning options.

Height above ground: Height of the storey in meters above the ground. This value can be entered only in the storey with the number 0. The building height is also calculated on this basis and the heights of the other storeys are added. It is also possible to enter a negative value. In all other storeys, the height above ground is a pure output field and the calculated height of the storey floor above ground is only displayed.
