Details on Transfer View Properties

Information on the Transfer view properties dialog.

You are here:

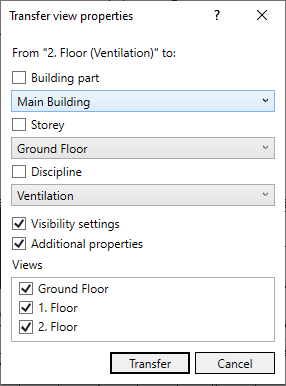

Revit Ribbon ➤ LINEAR tab ➤ Transfer view properties

From "Name of current view" to:

The name of the current view. The current view is the source for transferring the view properties.

View filter

Building part

Enabled: Filters the list of all views by building part selected from the drop-down list.

Storey

Enabled: Filters the list of all views by storey selected from the drop-down list.

Discipline

Enabled: Filters the list of all views by discipline selected from the drop-down list.

Transfer settings

Visibility settings, activated: Transfers all settings for visibility, graphics and filters.

Additional properties, activated: Transfers all view parameters listed in the Revit Properties dialog for the current view.

Views

List of (filtered) views. You can also transfer the settings of the current view to multiple views. To do this, activate each view to which you want to transfer the current settings.
