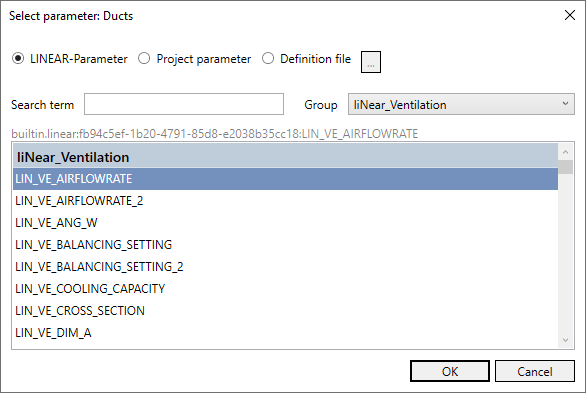

Decide whether you want to display LINEAR-parameters, project parameters or parameters from a definition file for shared parameters (created in TXT format). An external definition file has the advantage that you can load frequently used parameters filtered by group name and exchange them across projects. Clicking on opens the file explorer from which you can load the external definition file.
Tip: You can write quantity takeoff-relevant calculation results from the (pre-)dimensioning of networks to the label with Write parameters to network components to the components and create them as text attributes with the corresponding LIN parameter for the respective partial service in the short text. The prerequisite is that the respective parameter is configured as an export parameter for a network object. An example for the discipline ventilation would be the parameter LIN_VE_MATERIAL_NAME (air duct network material).
Limit the number of displayed parameters via the dynamic search and the selection of a parameter group.
