Set Minimum Temperature per Building Unit

Shows step-by-step how to set individual minimum temperatures in unheated condition for each building unit.

Before you begin

You would like to assign an individual minimum temperature for the unheated condition to each building unit.

Navigate to:

Module overview ➤ Heat load ➤ Project level ➤ General heat load data

Heat load general heat load data Linear Building

Procedure

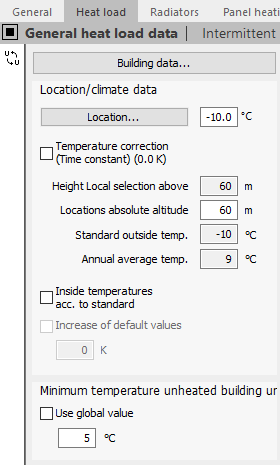

Disable the option Apply global value in the section T-min unheated building unit.
Switch to the building unit level in the building structure.
Switch to the General building unit data section.

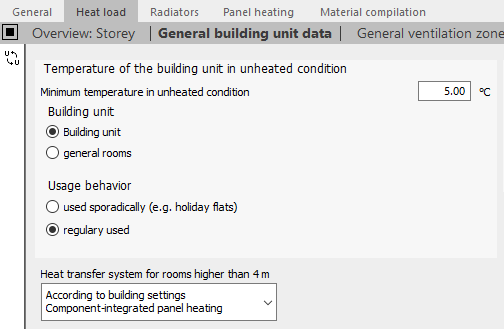

Beside Minimum temperature in unheated condition, enter the temperature for this building unit.

The proposed value is the last globally set temperature.

Results

The building unit has an individual minimum temperature for the unheated condition.
