Setting Kelvin-hours Above/Below Set Point

Shows step-by-step how to set the kelvin-hours above/below set point according to DIN 4108-2 for the year simulation.

Before you begin

You want to calculate for the summer heat demonstration how many times Kelvin-hours above/below set point occur each year with the current heating and cooling systems configuration.

Navigate to:

Module overview ➤ Cooling load dynamic ➤ Project level ➤ Settings ➤ Temp. above set point

Dialog settings Linear Building

Procedure

  1. Determine the reference temperatures for cooling and heating.
  2. Click on beside Usage time ().

    The Operating profiles dialog opens.

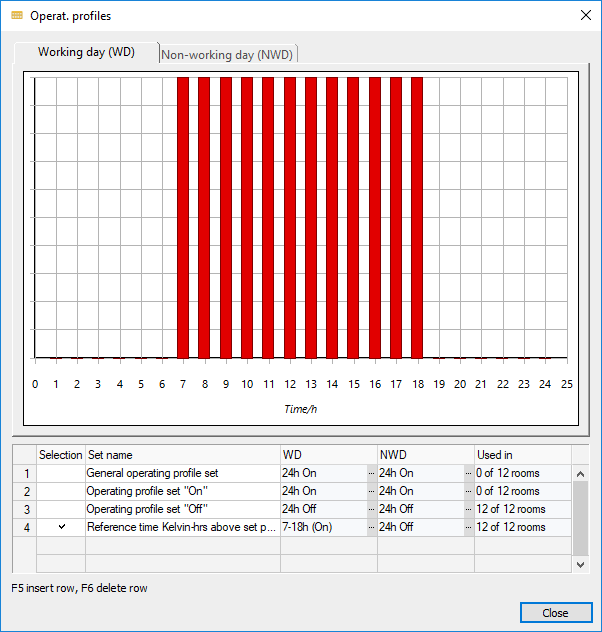

    Dialog operating profiles Linear Building
  3. Activate the desired profile and Close the dialog.

    A new project includes standard operating profiles, which you can change if need be.

  4. In Max. Kelvin-hours above set point or in Max. Kelvin-hours below set point, click ... and select the desired value.

Results

The Kelvin-hours above/below set point are determined and displayed in the result overview of the rooms. If the defined values are exceeded, a warning is issued for the respective room.
