Details on General Ventilation Zone Data

Information on the General ventilation zone data section in the Heat load tab of the building unit level.

If you have used the function Consider apartments with the same name and number as one apartment to connect two apartments, all settings in this area will be transferred to the respective connected apartment.

You are here:

Module overview ➤ Heat load ➤ Building unit level ➤ General ventilation zone data

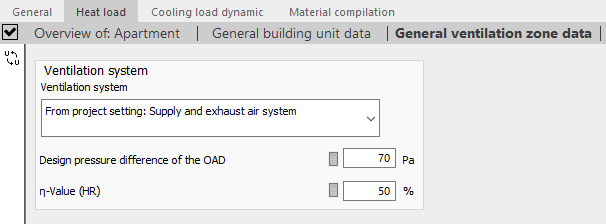

Heat load building Linear Building

Ventilation system

Ventilation system:

Here you can set a ventilation system for the building unit in deviation from the project settings. The setting from the project level is adopted for now.

Design pressure difference of the OuAO: The design pressure difference is transferred from the ventilation concept if the module is activated.

Eta value (heat recovery):

Enter the efficiency of the heat recovery system in percent. It is only used if there is a supply and exhaust air system (in the ventilation system section, room data ventilation). The efficiency is then used to calculate the supply air temperature of supply air rooms.
