Details on Heat Load Data in the Apartment
Information on the Heat load data on: section Apartment.
You are here:
General Apartment data
Defines the number and name of current storey. Click
opens the general storey data.

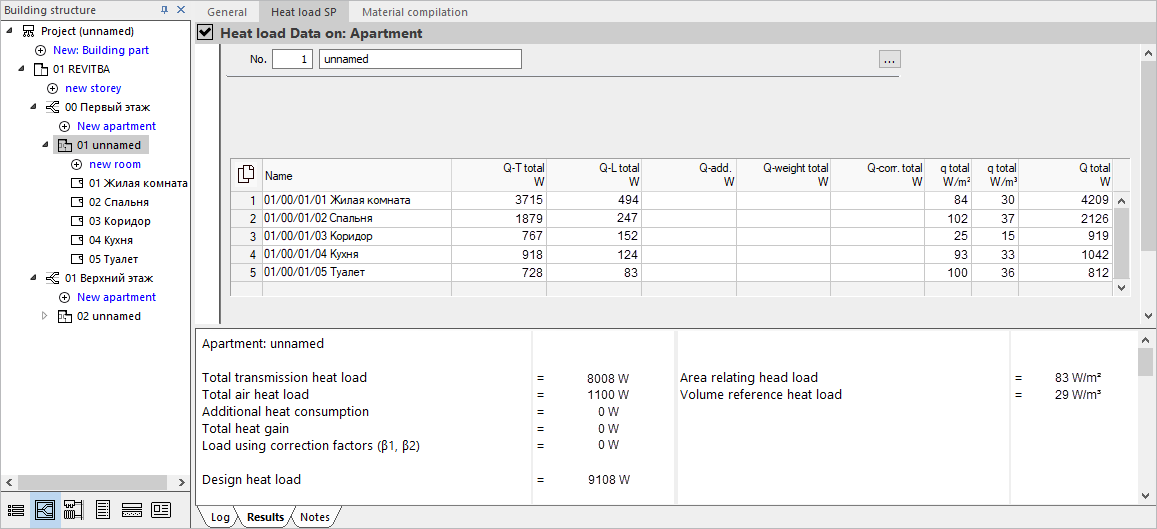

Table
The table lists the rooms of this apartment. The values in this view are only displayed for information and cannot be edited.
By clicking
you have the possibility to copy the contents of the table with or without column heading and paste it into Excel.
If you have selected individual rows or cells, you can copy the selected data with the key combinations Ctrl+C (with column heading) or Ctrl+Shift+C (without column heading) and paste it into Excel, for example.
| Q-T total | Transmission heat loss |
| Q-L total | Ventilation heat loss |
| Q-supplement | Additional heat consumption |
| Q-weight total | Heat gain |
| Q-corr. total | Loads from correction factors beta 1 and beta 2 |
| q total [W/m2] | area-related heat load |
| q total [W/m3] | volume-related heat load |
| Q total | Total heat load of the storey |
Results tab
The heat load determined for this apartment, broken down into transmission heat losses, ventilation heat losses, and heat gains. Furthermore, area- and volume-related heat loads as well as additional loads due to correction factors are shown. The lowest line contains the design heat load for this apartment.
