Details on Heat Load Data in Storey
Information on the Heat load data on: section Storey.
You are here:
General storey data
Defines the number and name of current storey. Click
opens the general storey data.

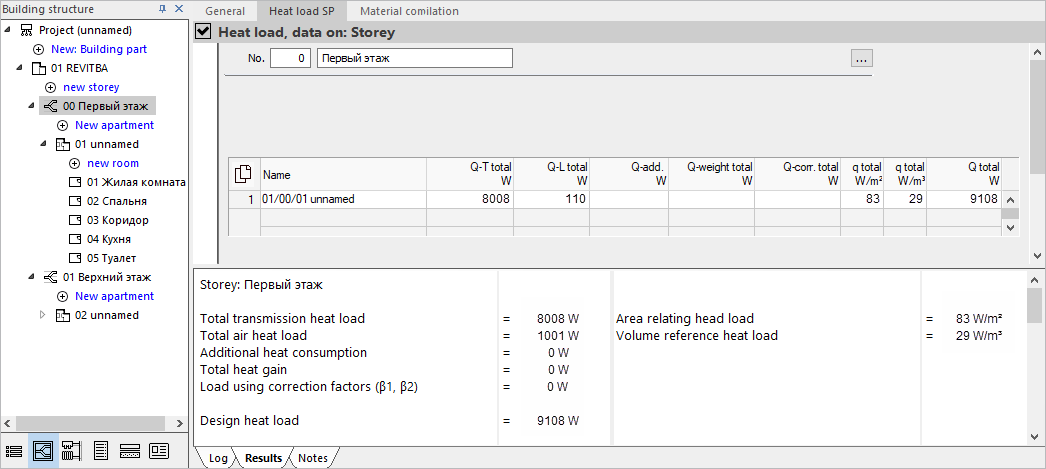

Table
Depending on whether a storey contains apartments or not, either the apartments on the storey or the rooms on the storey are listed here. The values in this view are only displayed for information and cannot be edited; they refer to apartments or rooms depending on the presence of apartments in the storey.
By clicking
you have the possibility to copy the contents of the table with or without column heading and paste it into Excel.
If you have selected individual rows or cells, you can copy the selected data with the key combinations Ctrl+C (with column heading) or Ctrl+Shift+C (without column heading) and paste it into Excel, for example.
| Q-T total | Transmission heat loss |
| Q-L total | Ventilation heat loss |
| Q-supplement | Additional heat consumption |
| Q-weight total | Heat gain |
| Q-corr. total | Loads from correction factors beta 1 and beta 2 |
| q total [W/m2] | area-related heat load |
| q total [W/m3] | volume-related heat load |
| Q total | Total heat load of the storey |
Results tab
The heat load determined for this storey, broken down into transmission heat losses, ventilation heat losses and heat gains. Furthermore, area- and volume-related heat loads as well as additional loads due to correction factors are shown. The lowest line contains the design heat load for this storey.
