Details on Editing Capacity Profiles

Information on the Capacity profiles dialog in the dynamic cooling load calculation.

You are here:

Module overview ➤ Cooling load dynamic ➤ Project level ➤ Settings ➤ Options ➤ Load limitation ➤ Calculator symbol ➤ WD/NWD ➤ ...

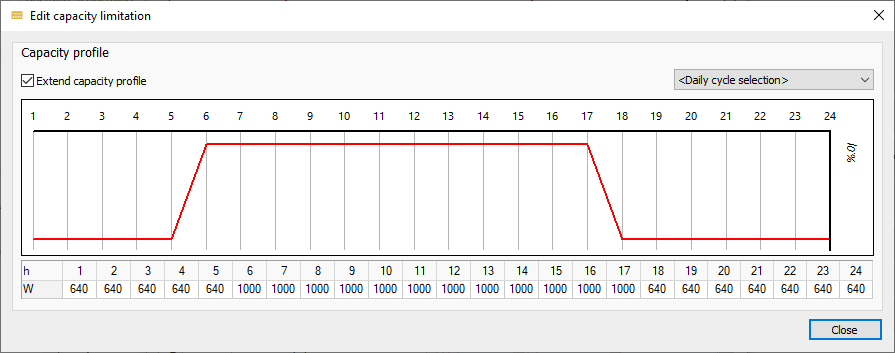

Extend capacity profile - activated: Displays a text box below the diagram for each hour of the day for manually entering a percentage value and activates the Diurnal variation selection drop-down list. In addition, the value can be set by clicking into the diagram and dragging it to the desired value.

Disabled: You can enter a constant percentage value for the overall daily course.

Diurnal variation selection: Drop-down list for selecting predefined performance profiles. The values are transferred to the profile after selection and can be adjusted if necessary.
