Details on year simulation results, building - temperatures

Information on the Temperatures tab in the Year simulation results, building dialog.

You are here:

Module selection ➤ Dynamic cooling load ➤ Project level ➤ Year simulation results, building ➤ Temperatures

Results annual simulation temperatures Linear Building

Diagram

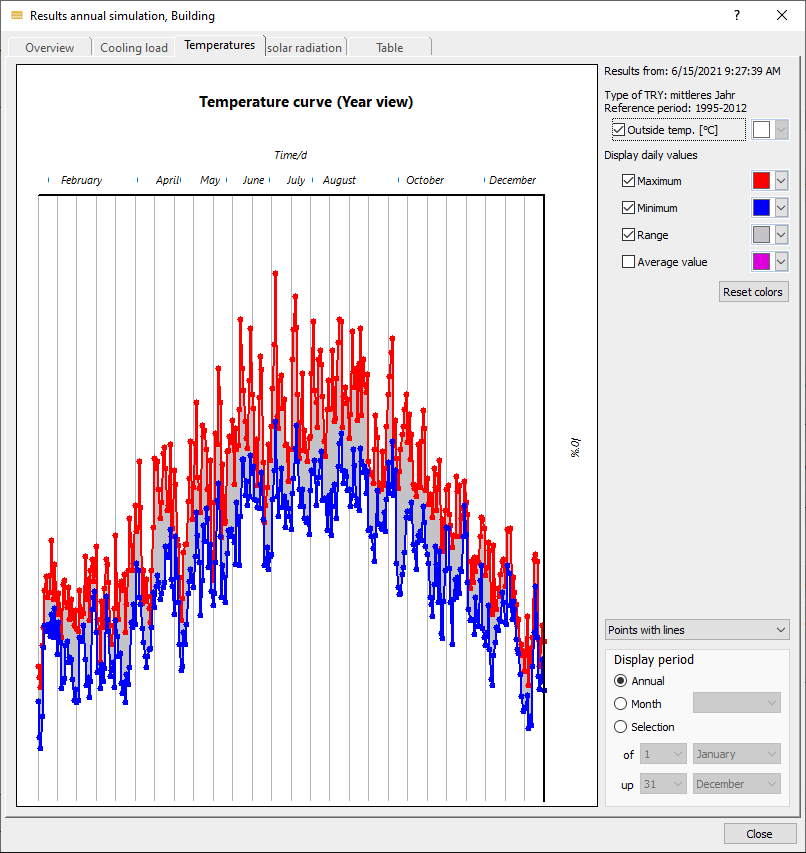

The diagram shows the outside temperatures resulting from the year simulation, taking into account the settings from the location and climate data.

Outside temperature

The time of the calculation is displayed, as well as the type of test reference year (provided that this information is available in the referenced file), and the reference period.

Outside temperature - activated: the diagram shows the minimum, maximum and mean temperature for the selected display period for each day. For the monthly view or for the freely selected time frame, the values are displayed to the hour. You can adjust the color as needed. Clicking Reset colors restores the default color.

You can choose from the following options for displaying the diagram:

  • Bar chart

  • Line diagram

  • Points with lines

Display period

The time frame for the display in the diagram. You can choose either the whole year, a specific month or a manually defined time frame for display in the diagram.
