Details on Results Annual Simulation, Room - Solar Radiation

Information on the Solar radiation tab in the Year simulation results, room dialog.

You are here:

Module selection ➤ Dynamic cooling load ➤ Room level ➤ Year simulation results, room ➤ Solar radiation

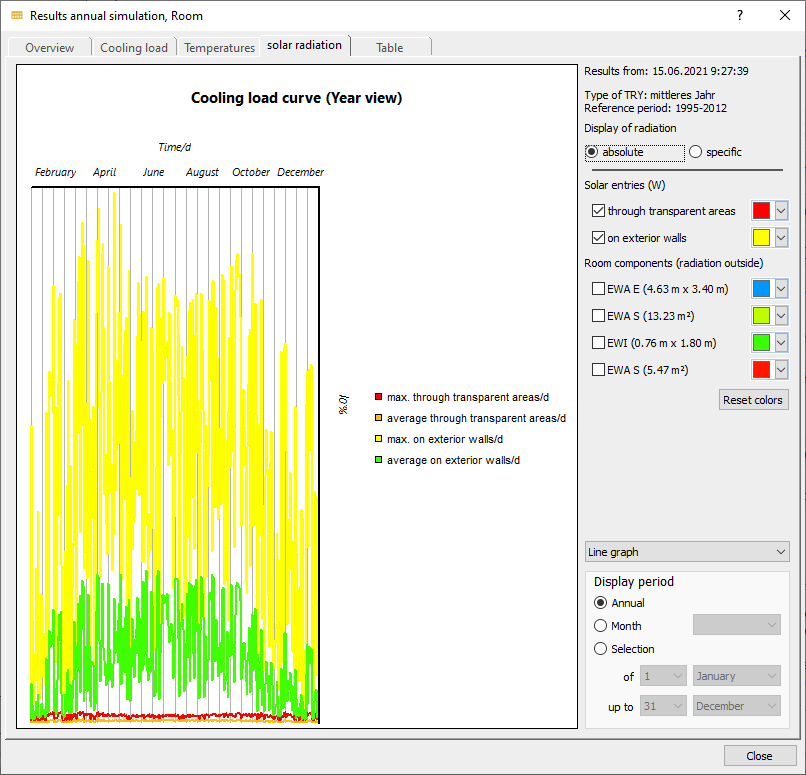

Results annual simulation solar radiation Linear Building

Diagram

The diagram shows the load curve determined from the year simulation over the selected display period for this room. For each of the options, the maximum and mean load are displayed.

absolute

If this option is activated, the resulting load from the total irradiation for transparent surfaces, exterior walls and sunlit room components can be displayed for the selected display period.

specific

If this option is activated, the resulting load from the solar irradiation can be displayed per square meter of outdoor area for the selected display period for all sunlit room components.

Reset colors: Restores the default colors for all displayable curves.

You can choose from the following options for displaying the diagram:

  • Bar chart

  • Line diagram

  • Points with lines

Display period

The time frame for the display in the diagram. You can choose either the whole year, a specific month or a manually defined time frame for display in the diagram.
