Details on operating profiles in the settings

Information on the Operating profiles tab in the Settings dialog of the dynamic cooling load calculation.

You are here:

Module overview ➤ Dynamic cooling load ➤ Project level ➤ Settings ➤ Operating profiles

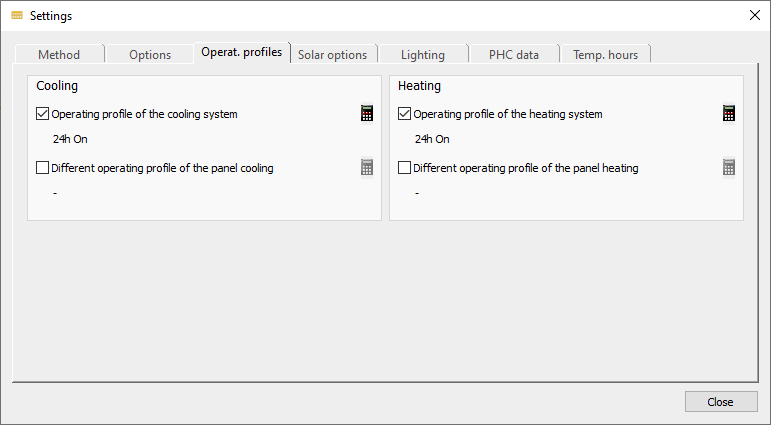

Cooling/heating load operating profiles

Operating profile of the cooling system, Operating profile of the heating system

Enabled: To operate the systems an operating profile can be selected in which the operating times of the systems are specified. Clicking opens the Operating profiles dialog, where you can activate or create the desired operating profile.

Deactivated/no operating profile active: The system is on continuously.

Different operating profile for surface cooling, Different operating profile for surface heating

Enabled: A different operating profile can be selected for the operation of the panel heating/cooling. Clicking opens the Operating profiles dialog, where you can activate or create the desired operating profile.

Disabled: The profile for the cooling system is used for the operation of the panel heating/cooling.
