Details on Luminance Profiles

Information on the Adjust illuminance profile dialog in the dynamic cooling load calculation.

You are here:

Module overview ➤ Dynamic cooling load ➤ Project level ➤ Settings ➤ Lighting ➤ (Profile of required brightness) calculator symbol

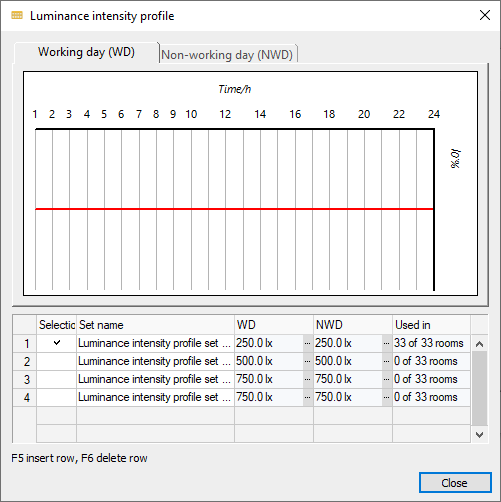

Luminance intensity profiles Linear Building

Diagram

In the diagram, the percentage utilization of the luminance profile set that was last selected in the table is displayed for the working days (WD) or for the non-working days (NWD).

Table

Selection - activated: This profile set is used in the calculation of the load due to lighting.

Set name

Name of the illuminance profile set. You can edit the name by clicking in the field. F5 or clicking in an empty line creates a new set. F6 deletes the selected set.

Displays the set parameters of the profile for the working day. Clicking opens the corresponding profile.

NWD

Displays the set parameters of the profile for the non-working day. Clicking opens the corresponding profile.

Used in

Indicates in how many rooms of the building structure the selected usage profile set is used.
