Details on Project Information

Information on the Project Information dialog.

You are here:

Project tab ➤ Plot / Print ➤ Project information ...

or

Analyse tab ➤ Output ➤ Project data...

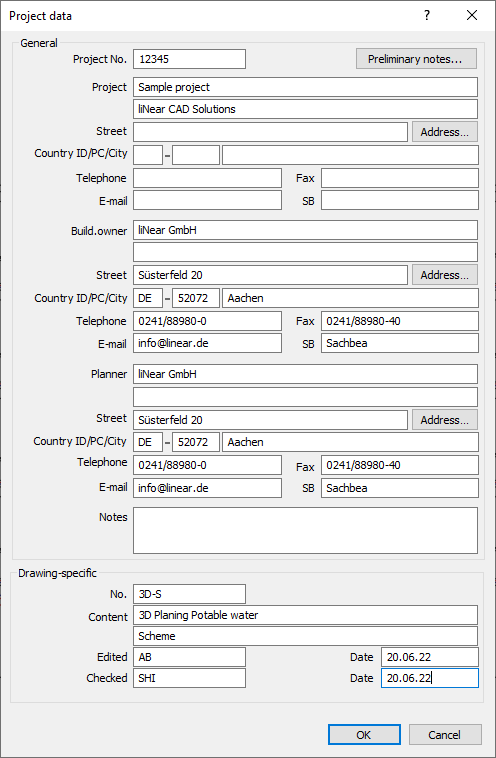

Dialog project data Linear AutoCAD

Text fields

Enter the project information. The Preliminary Notes button opens the Select Preliminary Notes dialog where you can create and select preliminary notes for your final printout. Clicking Address opens the LINEAR address database, where you can select address data that will then be applied to the project information and printout. All data are saved in the project and are available in later sessions.

Note:

Select the print item General so that the entered data appear in the output.
