Details on Configuration - Bath Design

Information about the Bath design tab in the LINEAR configuration.

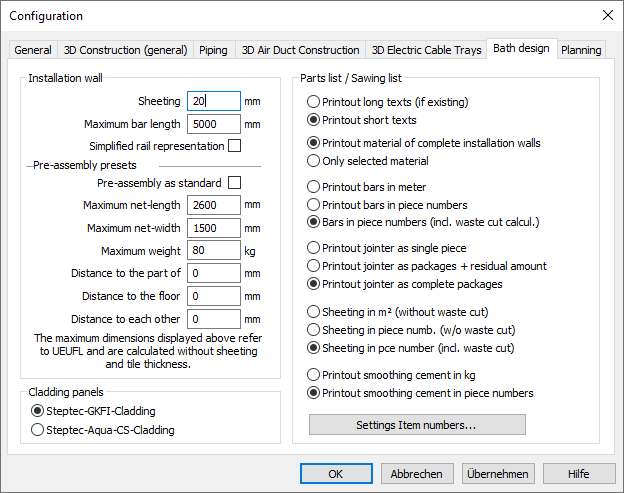

Here the specific presettings for the LINEAR bath design are made, e.g. specifications for the Installation wall, the type of Cladding panels and settings for the Parts list / Sawing lists. You can also set how the item numbers are displayed.

You are here:

LINEAR Control Board ➤ Configuration ➤ Bathroom Design

Installation wall

Specifies the dimensions for the construction of installation walls.

Cladding panels

Specifies the type of Cladding panels.

Parts list / Sawing list

Defines settings for the output of various components in piece and saw lists, e.g. output in pieces, meters, kg, etc.

Settings Item numbers ...

Opens the Settings dialog where you can make settings for the Item numbers and Position frame.
