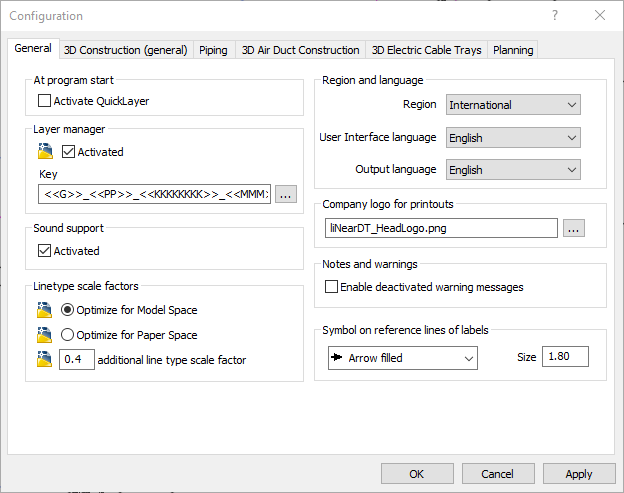

Details on Configuration- General
Information about the General tab in the LINEAR Configuration.
You are here:
At program start
Specify whether the QuickLayer dialog opens automatically when the program starts.
Layer manager
Activate the layer manager here and set the layer key. The layer manager organizes layers according to hierarchy levels and components. When drawing, the components are automatically stored on the layers provided for this purpose. This results in the possibility of showing or hiding or plotting entire hierarchy levels or individual components from them, for example.
Sound support
Activate the sound support if you would like to hear an acoustic signal when docking to the connector arrow of a 3D air duct.
Linetype scale factors
Set whether to optimize line type scale factors for model space or layouts. Furthermore, you can enter a value for the additional line type scale factor.
Region and Language
Depending on the installed version and existing licenses, you may choose from different regions here. Depending on the selected region, you can choose different interface and output languages.
Company logo for printout
Set here which logo should appear in the headline when outputting material lists. You can specify your own file that will be printed as the logo for the cover page or headline in your printouts. Create your own logo as *.bmp file or *.png file and save this file to a directory of your choice. On the General tab in the Company Logo for printout section, select the new file in the configuration. The next time you print or preview a page, your logo will be used. Use the Print preview command to test if the logo is displayed to your satisfaction.
Notes and warnings
You can reactivate warnings that have already been deactivated here.
Symbol on reference lines of labels
Defines the symbol used on the label reference lines and its size. Select the symbol from the drop-down list. Use the input field to specify the size of the symbol.
