Details on Configuration - 3D Construction (General)

Information about the 3D Construction (general) tab in the LINEARConfiguration.

The adjustments made here affect 3D objects with "Inplace Modeling", i.e. 3D air ducts, 3D pipes, but also panel heating circuits.

You are here:

LINEAR Control Board ➤ Configuration ➤ 3D Construction (General)

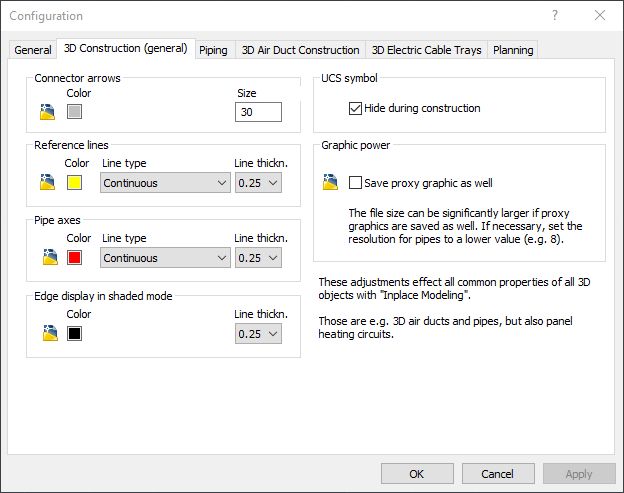

Dialog configuration Linear AutoCAD

Connector arrows, Reference lines, Pipe axes, Edge display by shaded mode

Select the colors, line types and sizes or line weightes of the construction aids.

UCS symbol

You can make the UCS symbol, which is usually hidden during construction, visible by removing the check mark.

Graphic power

Save proxy graphic as well

Proxy graphics are objects created with a program that is not available on the current computer. These objects can be displayed and plotted using other CAD-based software. If you save proxy graphics as well, this can significantly increase the size of the file. You can deactivate the co-saving of proxy graphics.
