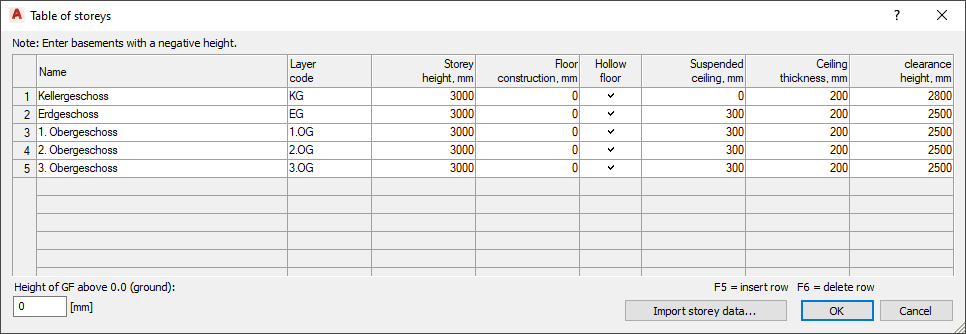

Details on the Table of Storeys
Information about the Table of storeys dialog.
All settings you make here are saved in the current drawing. If you would like to change certain settings permanently, create a corresponding template file.
You are here:
or
Name
In this column you can change the names of the storeys.
Layer Code
This abbreviation is used for the layer names if the variable <<E>> (for layer) has been created in the layer code. The number of characters in the layer code must not exceed the number of variables in the layer key.
Storey height, Floor construction
Specifies the dimensions for storey height and floor construction in mm.
Hollow floor
Specifies whether the floor of the storey should be detected as a hollow floor.
Suspended ceiling, Ceiling thicknesses, Clear height
Specifies the dimensions for suspended ceiling, ceiling thickness and clear height in mm.
Import storey data ...
Import storey data from DWG or PRO files.
