Closing Manifold Connection Gaps

Shows how to close gaps in the manifold connection numbering.

Before you begin

You have gaps in the numbering of the manifold ports and would like to re-establish continuous numbering.

In this example, both circuit zones in the living room were deleted and redesigned. This is how a gap has arisen in the manifold connection numbering.

Requirement:

You have one or more gaps in the manifold connection numbering.

Navigate to:

Module overview ➤ Module selection ➤ Pipe run view ➤ Manifold

Applies to: Radiators, cooling convectors, panel heating, panel cooling.

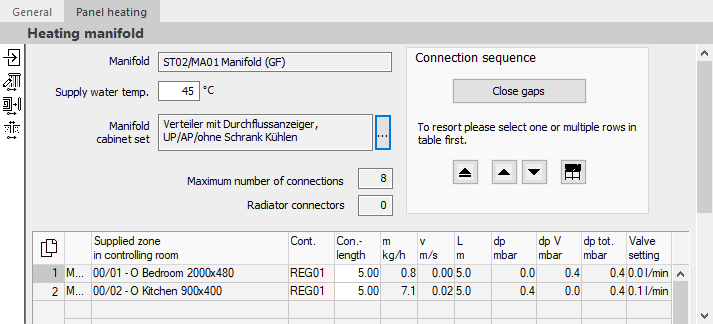

Panel heating heating manifold Linear Building

Procedure

Click the Close gaps button.

Results

You have closed the gaps in the manifold connection numbering.

Panel heating heating manifold port Linear Building
