E-Learning: Tabellen und ihre Aufgaben

Course: Tables and Their Purpose

Content

  1. General Information
    • 1.1 Foreword
  2. The Tables in Detail
    • 2.1 The Table of Storeys
    • 2.2 The Table of Disciplines / Trades / Media
    • 2.3 The Table of Systems and Spools
    • 2.4 The Table of Components
    • 2.5 The Table of Insulation Materials
  3. Practice
    • 3.1 Practice the Use of Tables
E-Learning LINEAR AutoCAD - Tables - Stroey table

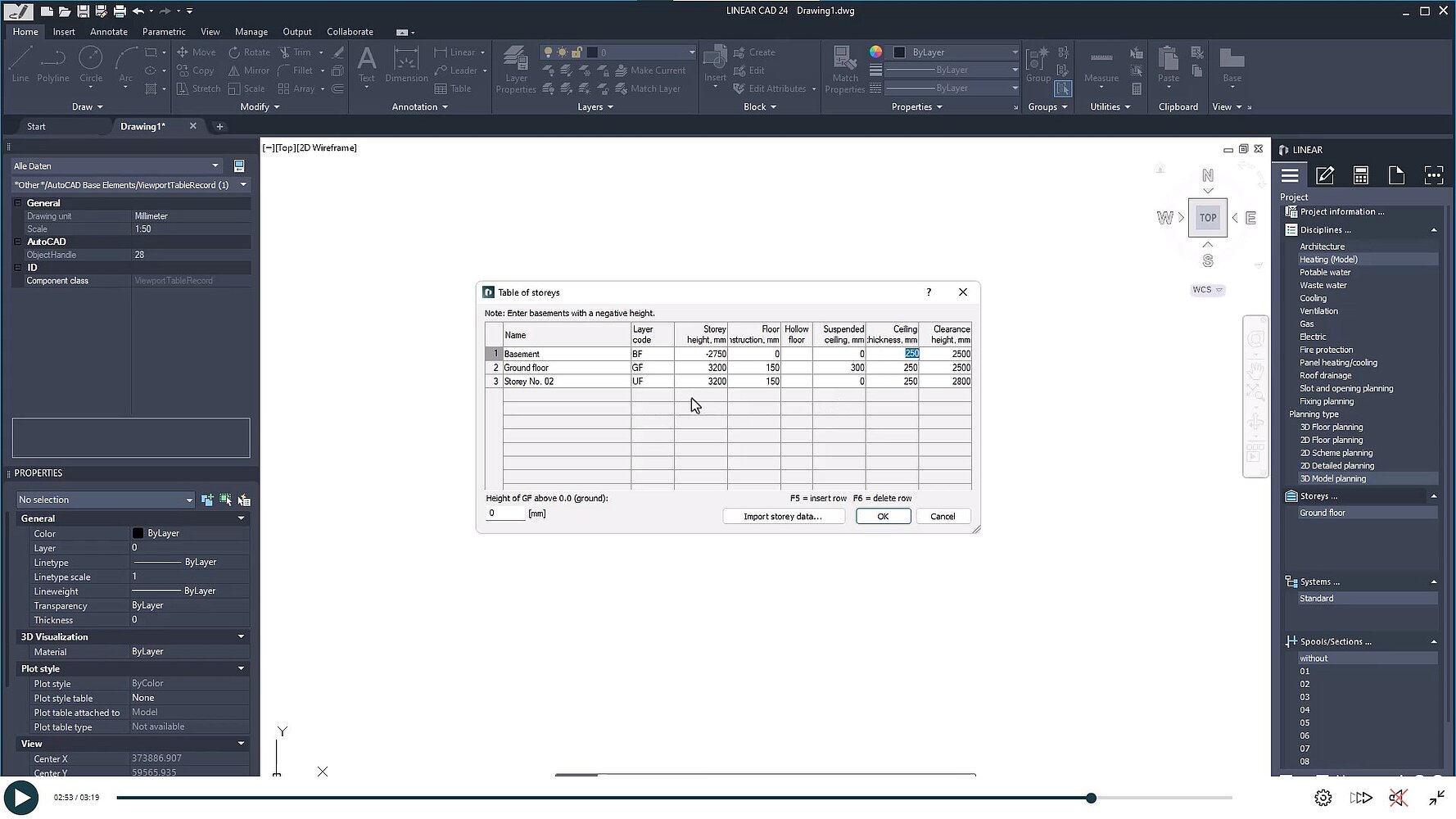

We start with the storey table, which is relevant in almost every project and is used to define heights, floor structures, suspended ceilings and ceiling thicknesses.
E-Learning LINEAR AutoCAD - Tables - Media

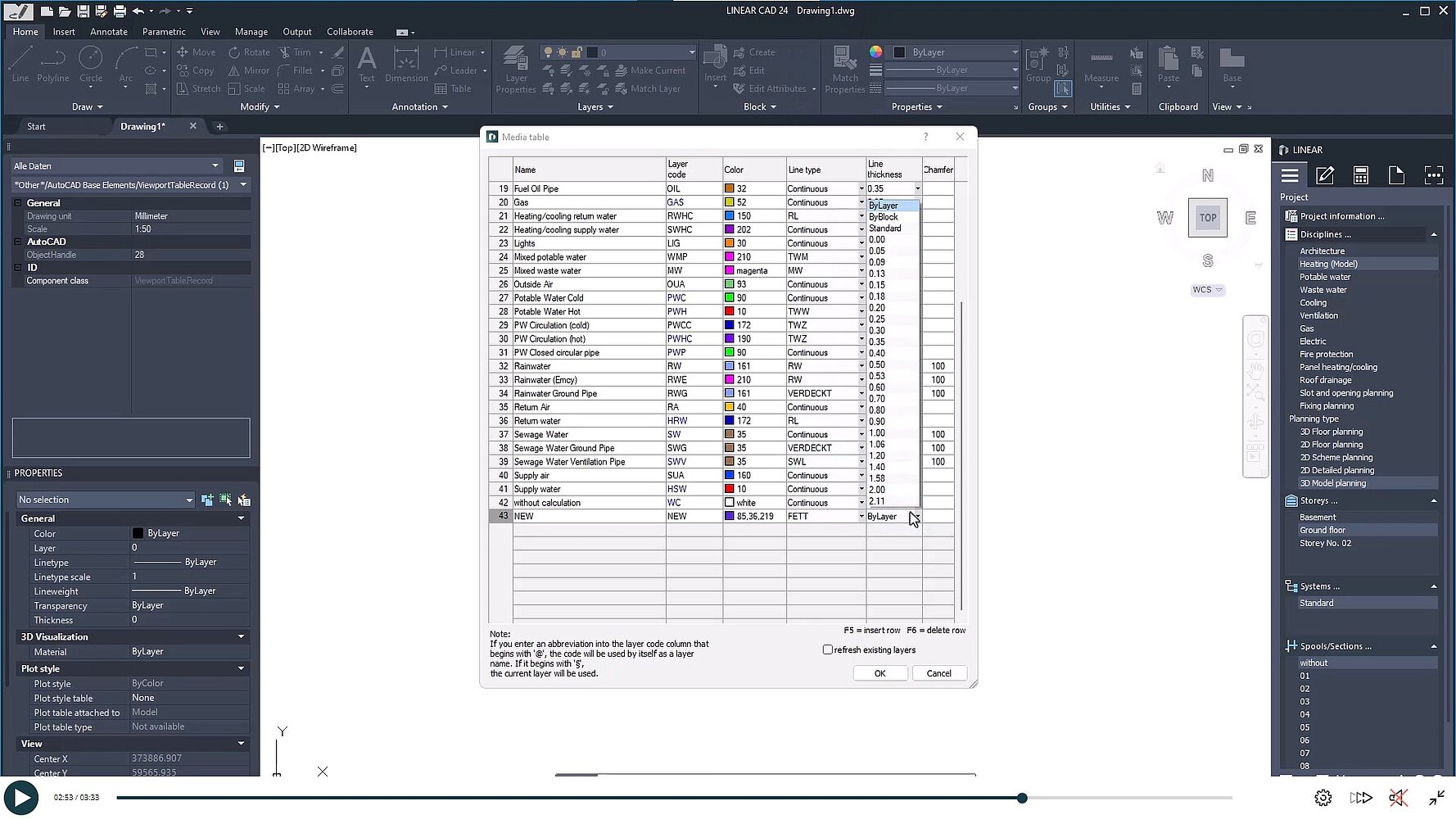

We then go into the table for creating and customizing disciplines, trades and associated media.
E-Learning LINEAR AutoCAD - Tables - Spools
There is also a table for managing plants and spools.
E-Learning LINEAR AutoCAD - Tables - Components

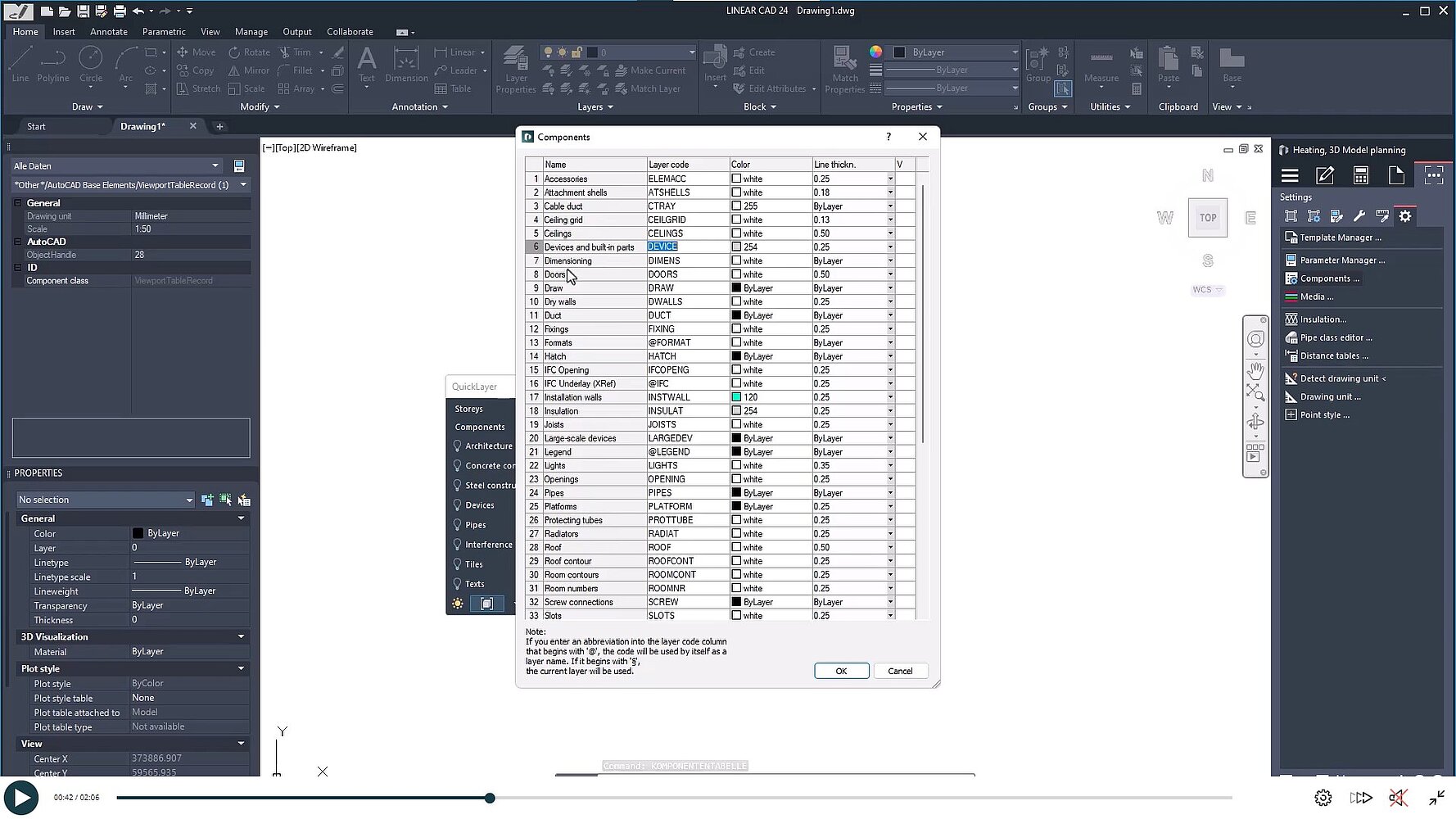

Components are organized in over 50 different layers, with texts, walls and multidisciplinary symbols assigned to separate layers. The table can be used to hide and show individual components.
E-Learning LINEAR AutoCAD - Tables - Insulation

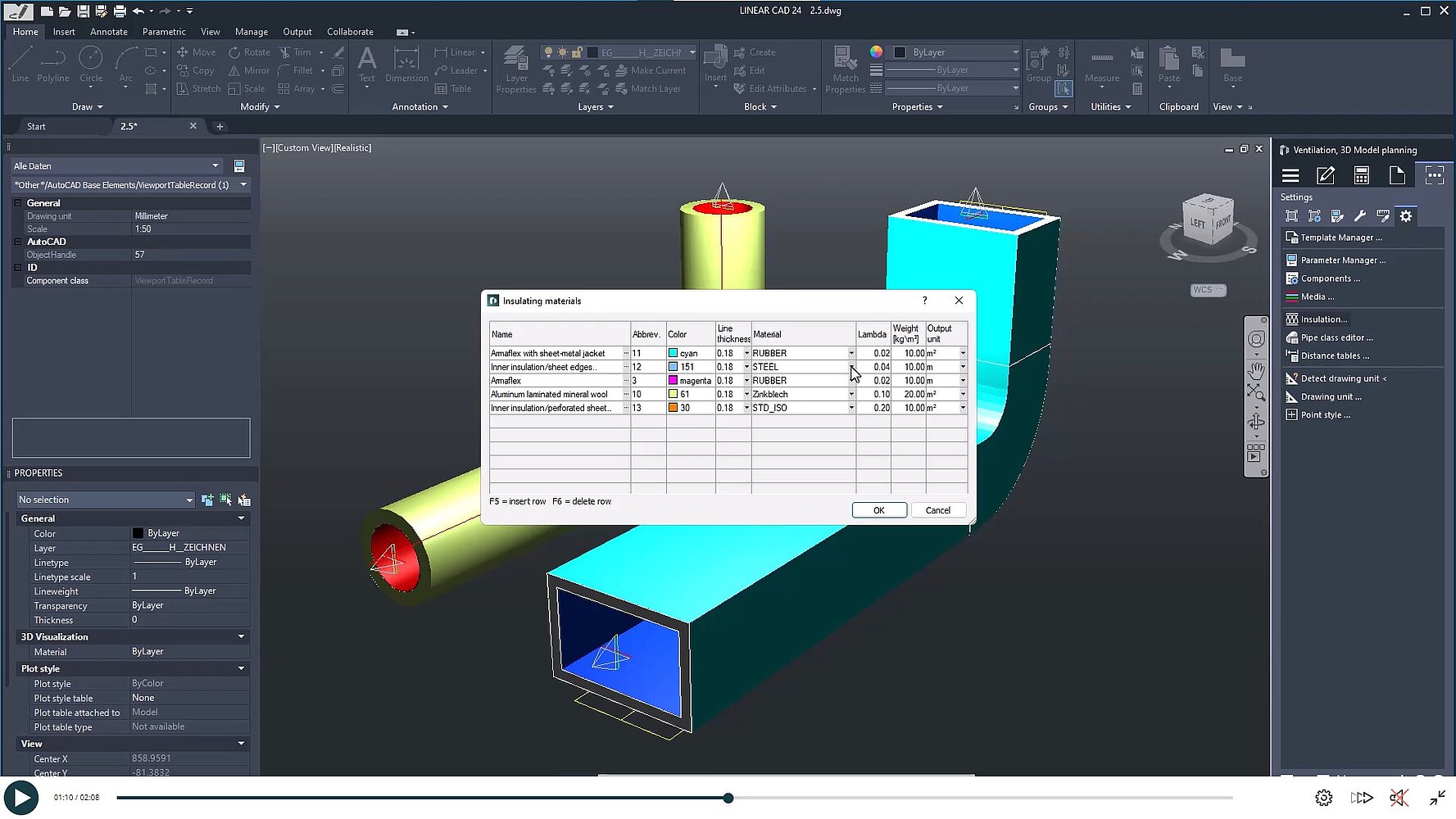

Finally, we look at the insulation table for 3D pipes and air ducts. The insulation material designations can be edited and expanded here.
