Protecting the Configuration Page with a Password

Shows step-by-step how to set up a password for the Admin Control Board (ACC) configuration page.

Before you begin

You want to password protect the ACC configuration page to ensure that only authorized people have access to this area.

Requirement:

All the points mentioned on the Prerequisites for installing software protection page are taken into account.

Navigate to:

Tip:

You can also connect to the ACC without LINEAR Admin directly through your web browser. Open the page http://localhost:1947 in your web browser.

LINEAR AdminHasp ToolsControl Center

Sentinel Admin control center Linear Installation

Procedure

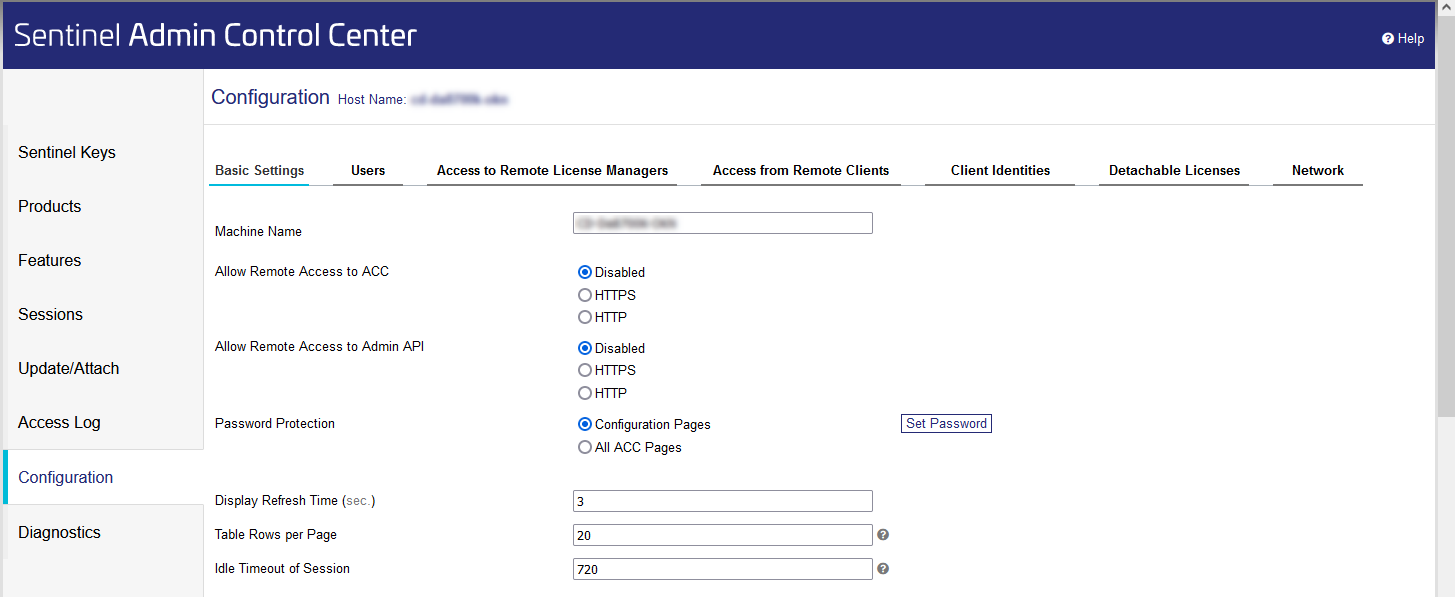

  1. In the Navigation bar, click Configuration.
    Sentinel Admin control center Linear Installation
  2. On the Basic settings tab, under the Password Protection point, enable the Configuration pages option.
  3. Click Set password.

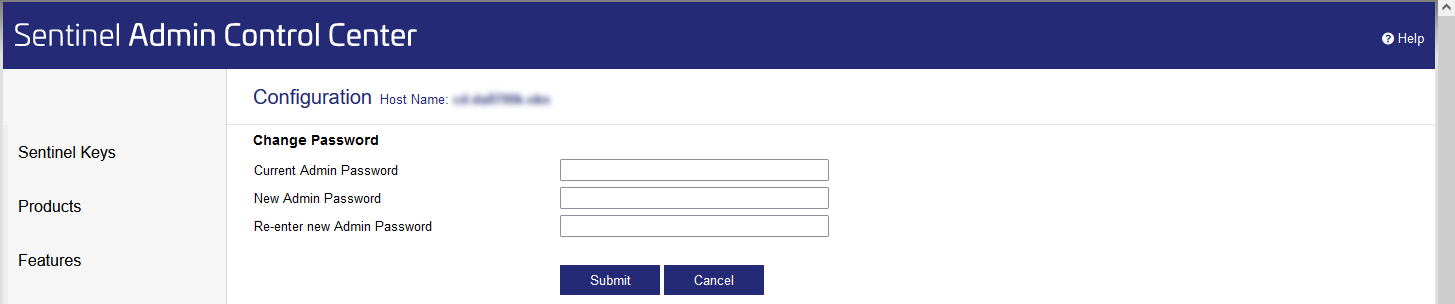

    The page for changing the password opens.

    Sentinel Admin control center Linear Installation
  4. Enter the new password under New Admin Password and confirm it again under Re-enter new Admin Password.

    During the initial setup the Current Admin Password field remains blank.

    The password is set up and the following dialog opens.

    Sentinel Admin control center Linear Installation

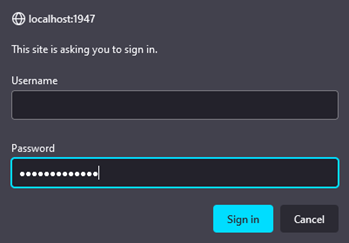

  5. Leave the Username field blank, enter the password and click Log In.

Results

You have completed the password setup.
