Details on Adjust Storeys

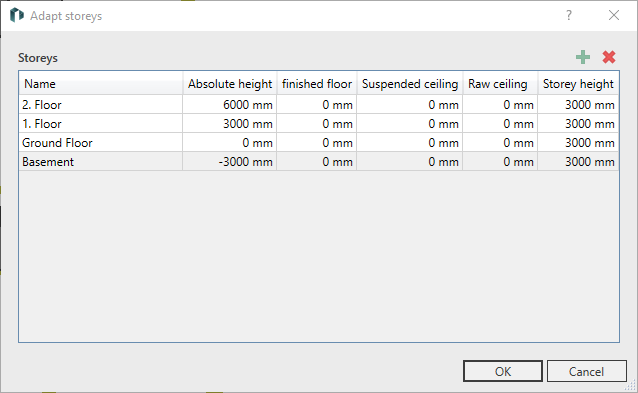

Information on the dialog Adjust storeys in connection with the workflow Scheme.

In this dialog, you have the possibility to check and adjust the values entered from the storey table before creating the scheme. The values in this dialog are determined on the basis of the information in the Storeys dialog. If changes have been made in the Storeys dialog, the values are updated when you click on Derive scheme from model < again.
Note: All manual adjustments in this dialog only affect the scheme creation; values in the Storeys dialog are not changed. Manually adjusted values are also not overwritten with the values from the Storeys dialog.

You are here:

Project tabDisciplines ...Workflows: SchemeConstruction tab

Icons

– Opens a list of previously deleted storeys for recovery.

– Deletes the currently selected storey.

Building parts

If the project contains building parts with different storey tables, you can use this drop-down list to select which storey table should be used to create the scheme.

Name

The name of the storey is taken from the Storeys dialog and cannot be adjusted here.

Absolute height

The absolute height is taken from the Storeys dialog. The value cannot be changed.

Finished floor

The height of the finished floor is shown as the distance between the top edge of the unfinished floor and the top edge of the finished floor. You can edit this value.

Suspended ceiling

The height of the suspended ceiling is shown as the distance between the lower edge of the suspended ceiling and the lower edge of the unfinished ceiling. You can edit this value.

Unfinished ceiling

The height of the unfinished ceiling is specified as the distance between the lower edge of the unfinished ceiling and the upper edge of the unfinished floor of the storey above. You can edit this value.

Storey height

The stprey height is taken from the Storeys dialog and cannot be adjusted here.
