Details on Ejection Process

Determine for individual hot water consumers, after which time the hot water ejects after the preset testing temperature. For a listing of the ejection times of all tapping points, please refer to the print topic Ejection time of the Output.

You are here:

Project tab ➤ Discipline Potable water ➤ Analyse tab ➤ Hygiene functions ➤ Ejection process < ➤ Selection of hot water consumer

Position:

Displays the name of the hot water consumer, its section part number and the component number.

Testing period

Enter the time to be observed during the hot water ejection.

Testing temperature

Enter the temperature which is to be achieved during the hot water ejection.

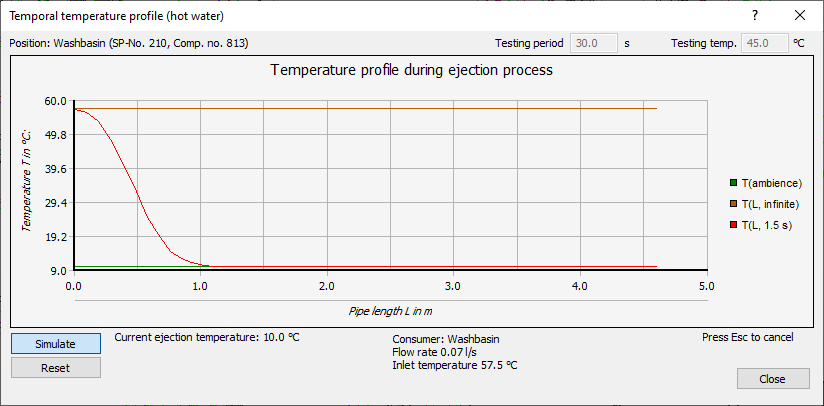

Diagram: Temperature profile during the ejection process

Shows the hot water temperature in relation to the pipe length. During the simulation of the hot water ejection process the diagram is animated and shows the temporal status change.

Escape

Press Esc to interrupt the simulation of the ejection process.

Simulate

Starts the simulation of the hot water ejection process. Afterwards, the results are displayed underneath the diagram.

Results

After clicking Simulate the ejection times for the set testing temperature, for the steady state ejection temperature and the volume exchange time are displayed.

Component data

Displays the name, the volume flow rate and the inlet temperature of the hot water at the consumer.

Reset

Resets the results.

Close

After clicking Close you can select another hot water consumer for the simulation of the hot water ejection process. Press Enter to return to the calculation dialog.
