Details on Pump Selection/Pump Catalog
Information on the dialogs Pump Selection and Pump Catalog in the pipe network calculation.

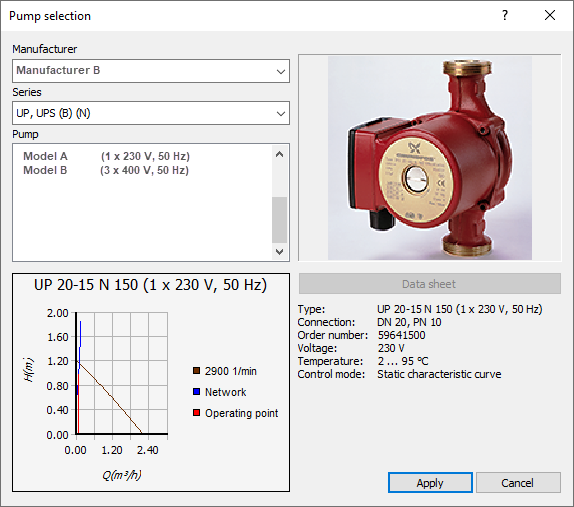

Pump selection
You are here:
Applies to: Heating, Cooling, Potable water.
Select a manufacturer pump and assign its data to the pumps in the model.
Manufacturer
Here, all manufacturers are available, whose data sets have been installed and, if necessary, have been licensed.
Series
Here all series are available, that are contained in the selected manufacturer data set.
Pump
Here, all models of the selected series are available.
Diagram
The graph shows the characteristics of the selected model.
Data sheet
If the manufacturer provides a data sheet in the data set, you can view it here.
Reset
Use this function to reset already assigned manufacturer data of a pump to neutral values. The delivery height and the flow rate of the pump are calculated and no manufacturer is given out.
Assign
Use this function to assign manufacturer data to a pump, which are used for calculation and in the material lists.

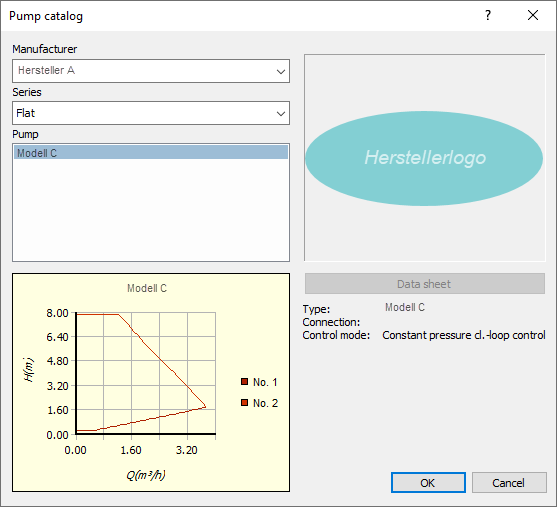

Pump Catalog
You are here:
Applies to: Heating and Potable water.
Get information about the pump installed in the component.
Manufacturer, Series, Pump
Displays the manufacturer, series and model of the pump.
Diagram
Displays the characteristic curve of the pump.
Data sheet
If the manufacturer provides a data sheet in the data set, you can view it here.
