Details on Duct Components
Information about the Duct Components dialog in the Air Duct Network Calculation.
You are here:
Applies to: Ventilation.

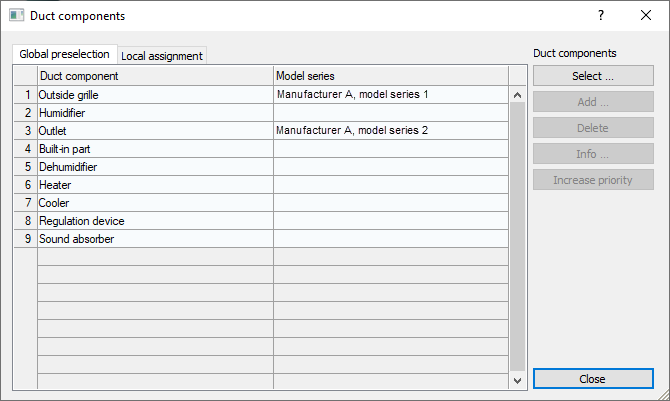

On the Global preselection tab, you can specify the duct component models that are to be used in the entire project. If you select several models for a duct component, the program calculates which of the components fits best and inserts it automatically. The program checks the listed models in the order in which they are listed.
On the Local assignment tab, you can select additional models that are used for individual components. You can then assign the models to individual duct components in the drawing.
| Element | Description |
|---|---|
| Duct component | List of all possible duct components. |
| Model series | Displays the selected model series with basic information. You can select several models for a duct component. Each model is displayed in a separate row. |
| Select ... | Opens the Select duct component dialog in which you can add a model to the currently selected duct component by selecting the manufacturer and version or change an existing assignment. Suitable user-defined components are also available for selection in the Select duct component dialog. |
| Add ... | This button is available if a model has already been assigned to a duct component and the corresponding row is highlighted. Clicking on this button opens the Select duct component dialog, in which you can assign further models to the duct component by selecting the manufacturer and version. Suitable user-defined components are also available for selection in this dialog. |
| Delete | Deletes the selected component assignment from the table. |
| Info... | Opens the Curve data dialog with information on the selected component. In addition to general information about the component, the characteristic curve and the setting values are displayed in relation to the selected dimension. |
| Increase priority | This button is available if at least two models are assigned to a duct component. A model that is not listed first can be moved up in the list using this button. The model listed first is used in the calculation if it is suitable. |
| Assign < (only Local assignment) | This function allows you to assign a model from the list to individual components in the model. |
| Search < (only Local assignment) | This function allows you to select a component in the model to have it highlighted in the list. |
 | If you select a model series from the list, you can use the arrow keys to display the objects of this model series one by one in the model. The program zooms in on the individual components. When you select a model from the list, parentheses indicate the number of existing components. |
| Remove < (only Local assignment) | Deletes the assignments of the selected model series in the model. When you click the button, the program will first ask if you would like to delete the assignments. |
