Details on Technical Data for Drainage Elements
Information about the technical data dialog for drainage elements.
The drainage element and its parameters determine the flow rate into the drainage network.
You are here:
Name
Specifies the name of the component. You can modify the name. Clicking
restores the default setting.
Settings

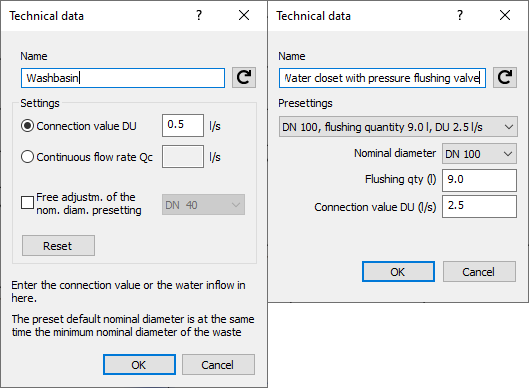

In this dialog, set the discharge data for the drainage element. These settings only need to be made if you intend to use values for calculation that differ from Table 4 of EN 12056-2. Here, enter either a Connection value or a Continuous flow rate. Under Pre-adjusted dimension, enter the minimum nominal diameter of the connector pipe.
Preset Toilet
The default values for toilets can be changed in the individual technical data dialogs. If the default values for all toilets are to be changed, make the change in the Settings on the Drainage tab.
