Details on Technical Data for Branches
Information about the technical data dialog for branches.
Branches are used to split or join flows. These can take a wide range of different construction forms.
You are here:
Name
Shows the name of the component. You cannot modify the name.
Pressure loss calculation
Here you can see the calculation of all Zeta values for straight ways and branches for flow separation, flow conjunction and counter flow, determined according to the selected norm.
The currently activated fields correspond to the installation situation of the branch.
Sound level, Geometry, Duct material and Insulation
Information on these sections of the component data can be found on the page “Details on duct component, pressure loss calculation, sound level, duct material/insulation and geometry in the components”.

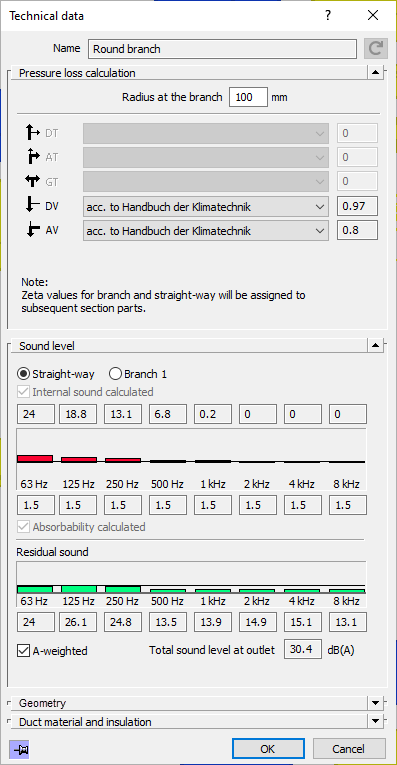

You can use the check boxes to display the sound level at the different points of the branch or T-piece (Straight-way, Branch 1).
