Details on Technical Data for T-pieces

Information about the technical data dialog for T-pieces.

A T-piece represents a branch or a junction of pipes in the pipe network.

You are here:

Project tabDisciplineAnalyse tabComponentsTechnical data ...Component

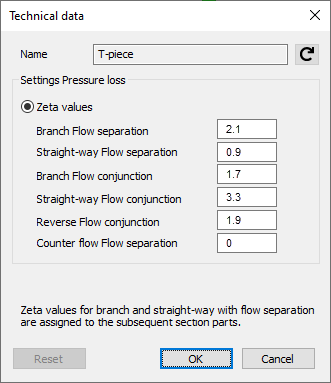

Technical data T-piece Linear Revit

Name

Shows the name of the component. You cannot modify the name.

Settings

For T-pieces, you can enter the Zeta values individually.

After calculating the pipe network, the installation situation of the T-piece is also displayed. The installation position is indicated by the black, not grayed-out description text.

Reset: If you enter Zeta values manually they will be displayed in bold and the Reset button will be activated. Click the Reset button to reset the values to table values of the norm.
