Details on Component Data for T-pieces

Information about the component data dialog for t-pieces.

A T-piece represents a branch or a junction of pipes in a pipe network. T-piece are characterized by three connection points with a pipe connected to each.

You are here:

Project tabDisciplineAnalyse tabComponentsTechnical data ...Component

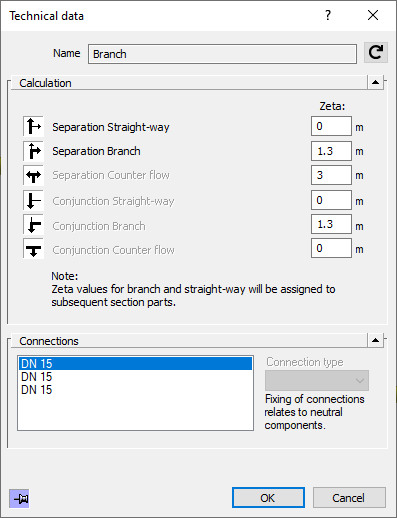

Technical data T-piece Linear Revit

Name

Shows the name of the component. You cannot modify the name.

Settings Pressure loss

For T-pieces, you can enter the Zeta values individually. If you calculate according to ÖVGW G11, the zeta value for all components is determined by the program and the field is deactivated.

After calculating the pipe network, the installation situation of the T-piece is also displayed. The installation position is indicated by the black, not grayed-out description text.
