Details on Component Data for Appliances

Information abpit the component data dialog for appliances.

Appliances include, for example, gas filters, filters, gas failure devices, and grommets with casing pipes.

You are here:

Project tabDisciplineAnalyse tabComponentsTechnical data ...Component

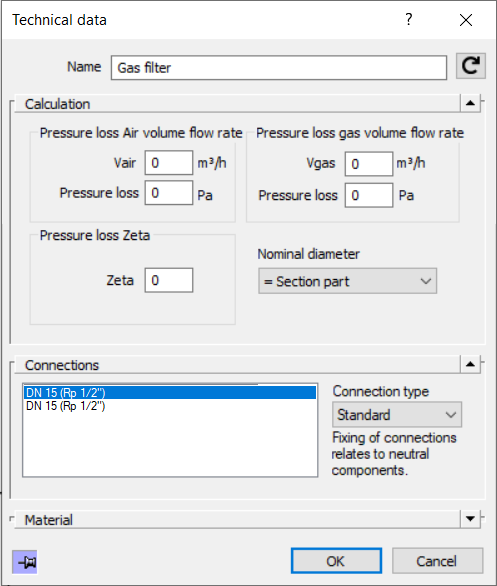

Dialog technical data Linear Revit

Name

Specifies the name of the component. You can modify the name. Clicking restores the default setting.

Calculation

Pressure loss air volume flow rate, Pressure loss gas volume flow rate, Zeta: These fields will not be filled at first; the default values are zero. You may enter the volume flow rates and the pressure losses here which are supposed to be taken into consideration for the pipe network calculation.

Nominal diameter: The nominal diameter results either from the calculated dimension of the section part (entry = Section part) or it can be preset (e.g. DN20).

Connections

The connection type can be selected from the drop-down list. When choosing Standard, the connection is set by the program.
