Details on Regulating Valves and Differential Pressure Closed-Loop Controller in Basic Conditions

Information on the Regulating valves – Dimensioning and differential pressure closed-loop controllers - Dimensioning sections in the Basic conditions dialog for heating and cooling pipe network calculation.

You are here:

Project tabDisciplineAnalyse tabCalculationBasic conditions

Or:

Project tabDisciplineAnalyse tabSettingsBasic conditions

Applies to: Heating, Cooling.

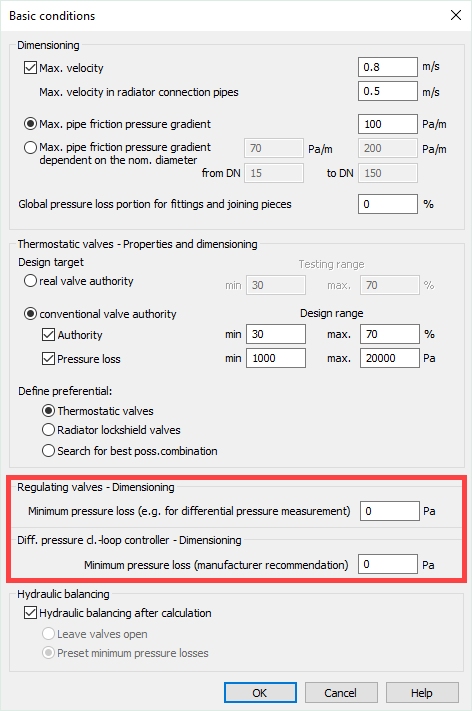

Basic conditions dialog Linear Analyse

Regulating valves – Dimensioning

In case a differential pressure measurement is carried out via measuring computers over the armature, a minimum pressure loss can be entered here.

Differential pressure closed-loop controllers - Dimensioning

In case a manufacturer recommends to, a minimum pressure loss can be entered here.

Note:

For dwelling stations or other components include a differential pressure closed-loop controller, this setting does not apply.
