Details on Basic Conditions

Information about the Basic conditions dialog in heating and cooling pipe network calculation.

You are here:

Project tabDisciplineAnalyse tabCalculationBasic conditions

Or:

Project tabDisciplineAnalyse tabSettingsBasic conditions

Applies to: Heating, Cooling.

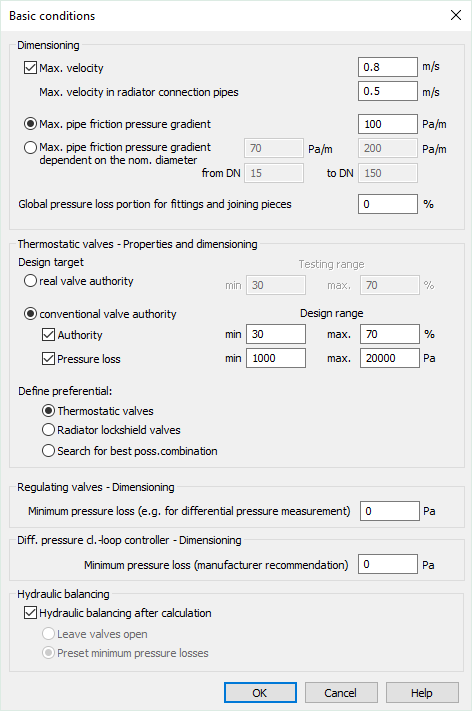

Basic conditions dialog Linear Analyse

Dimensioning

For the dimensioning, you can define global maximum values for the maximum velocity and a maximum pipe friction pressure gradient and a global pressure loss portion for fittings and joining pieces.

Thermostatic valves - Properties and dimensioning

Specify on how the valve authority is to be regarded and determine which valves are to be set as a priority.

Regulating valves - Dimensioning, Differential pressure closed-loop controllers - Dimensioning

When planning international projects, e.g. in Russia, you can enter minimum pressure losses for regulating valves and differential pressure closed-loop controllers.

Hydraulic balancing

Select, whether the hydraulic balancing is to be carried out and in which way.
