Details on Components (Ventilation)

Information about the Components section in duct network calculation.

You are here:

Project tabDiscipline VentilationAnalyse tabComponents

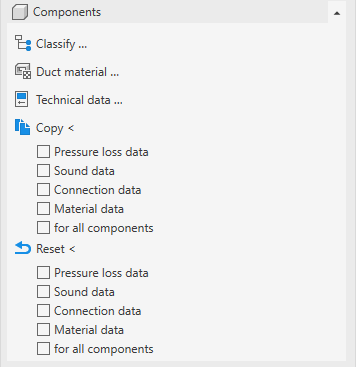

Section components Analyse Linear Revit

All settings specified in the section Components are saved in the components and ducts of the project.

Classify ...

Opens the Classify dialog after selecting components, in which the calculation types of the selected components are displayed. If required, you can also use this dialog to adjust the assigned calculation types and assign a calculation type to unclassified components.

Duct material ...

Opens the Technical data for ducts dialog after selecting components, where you can assign a different material to the selected ducts in the Duct material and Insulation area.

Technical data …

After selecting a component, this button opens the corresponding component dialog, in which technical data relevant for the calculation for that particular component can be entered.

Copy <

You can use this command to copy specific component data and then assign the copied data either to a selection of components or to all components of the same type. Activate the corresponding checkboxes to specify which data is copied and whether the copied data is applied to all components of the same type.

Check box

Description

Pressure loss data

Enabled: The pressure loss data data of the original component is copied.

Sound data

Enabled: The sound data data of the original component is copied.

Connections

Enabled: The connection data of the original component is copied.

Material Data

Enabled: The material data of the original component is copied.

for all components

Enabled: When copying, all components of the same type receive the data of the original component.

Disabled: After selecting the source component, you can select the components that will receive the copied data.

Reset <

Resets changed technical data if the corresponding checkboxes are activated. The reset can be carried out for all components of the same type or for a selection.

Check box

Description

Pressure loss data

Enabled: The pressure loss data data will be reset.

Sound data

Enabled: The sound data data will be reset.

Connections

Enabled: The connection data will be reset.

Material Data

Enabled: The material data will be reset.

for all components

Enabled: When resetting, the selected data of all components of the same type are reset.

Disabled: After activating the command, you can select the components for which the data is to be reset
