Details on Design Temperatures

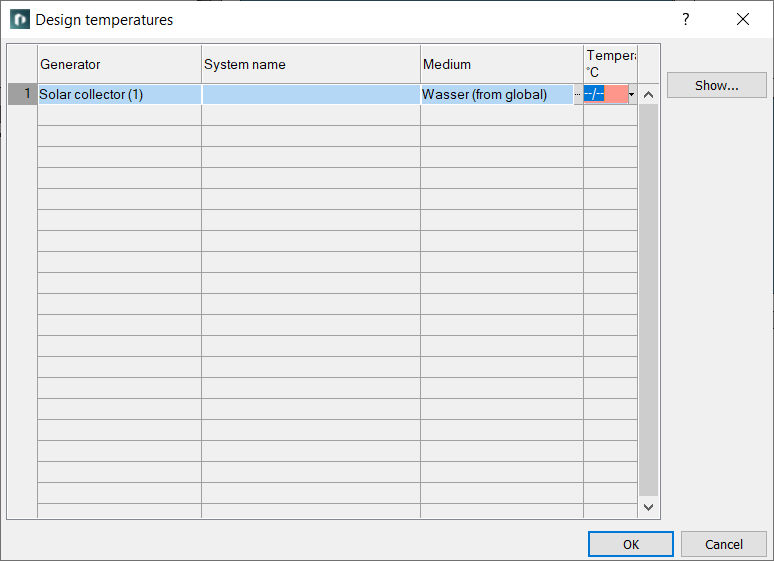

Information on the Design temperatures dialog for heat and cooling generators.

Before the first calculation, the system temperatures of heat and cooling generators must be defined in the dialog Design temperatures if the supply and return temperatures have not already been defined.

You are here:

Project tabDisciplinePlace and connect solar collectorAnalyse tabCalculation ...

Generator

Displays the designations of the generators. You can adjust the designation in the technical data.

System name

Defines the system name. For the sake of better differentiation when there are several systems, you may enter a name. This name will be displayed in the calculation dialog when selecting a system. Also when printing, you can select from the multiple systems that are available.

Medium

Displays the medium used by the system. A click on opens the dialog System related medium, where you can adjust the medium.

Temperatures

Defines the supply and return temperatures of the system. Click to select a pair of temperatures from the drop-down list or enter the temperatures manually. When entering values manually, you can enter the supply and return temperatures separated by a blank or by a slash.

Show

Displays components in the model. Select the row of a generator to enable the button.
