Setting the Thermal Bridge Supplement Globally

Shows step-by-step how to set a thermal bridge supplement for your entire project.

Before you begin

You would like to set a global thermal bridge supplement for your project.

Navigate to:

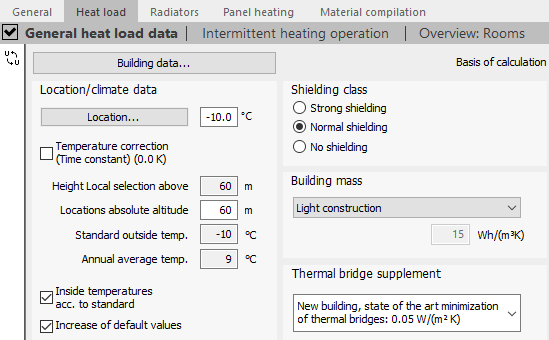

Module overview ➤ Heat load ➤ Project level ➤ General heat load data ➤ Thermal bridge supplement

Procedure

Open the drop-down list Thermal bridge supplement.
Select a category.

If you would like to set the thermal bridge supplements at the component in the room, select the Individual determination option.

Results

The selected thermal bridge supplement is used for the entire project.
