Editing Table for Thermal Bridge Supplements

Shows step-by-step how to edit the thermal bridge supplements table.

Before you begin

You would like to assign individual thermal bridge supplements directly to individual components in rooms and would like to add user defined thermal bridge supplements to the table of existing thermal bridge supplements.

Navigate to:

Master tables ➤ Variables, standard areas ➤ Variables (heights, temperatures...) ➤ T Thermal bridge supplements

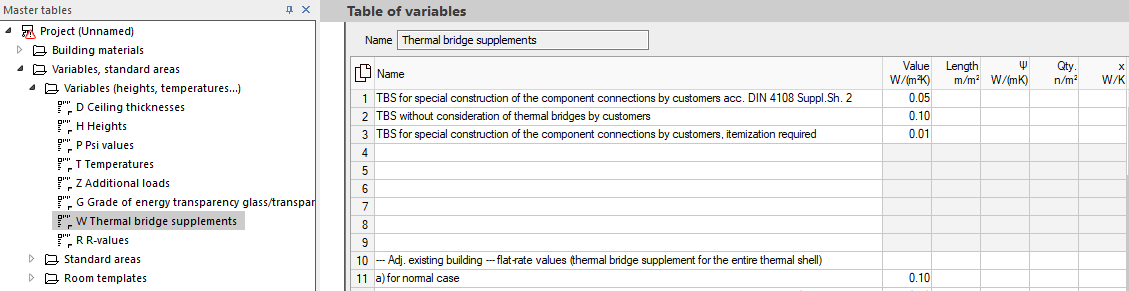

Table variables Linear Building

Procedure

  1. Click in an empty line and enter a name for the new variable.
  2. Enter all known parameter.

    Either the U-value supplement, the length and the length related heat transfer coefficient or the number of punctual thermal bridges with associated heat transfer coefficients shall be specified.

Results

The edited table is available to assign individual thermal bridge supplements
