Configuring Hygienic Minimum Ventilation Heat Loss on Room Level

Shows step-by-step how to set the hygienic minimum ventilation heat loss at room level.

Before you begin

You would like to set the hygienic minimum ventilation heat loss on a room-specific basis.

Navigate to:

Module overviewHeat loadRoom levelHeat loadVentilation

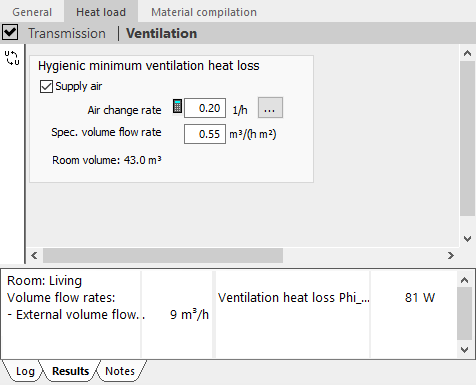

Ventilation heat loss heat load Linear Building

Procedure

  1. Activate the Supply air option if this room is to be a supply air room.

    The air exchange rate and the specific volume flow are automatically adjusted to the values required by the standard.

  2. Click and select the most suitable value for this room from the table.

    The selected air exchange rate is entered and the specific volume flow is adjusted accordingly.

Results

The hygienic minimum ventilation heat loss at room level is set.
