Set Ventilation System Globally

Shows step-by-step how to set up a ventilation system for your entire project.

Before you begin

You would like to define a project wide ventilation system.

Navigate to:

Module overview ➤ Heat load ➤ Project level ➤ General heat load data

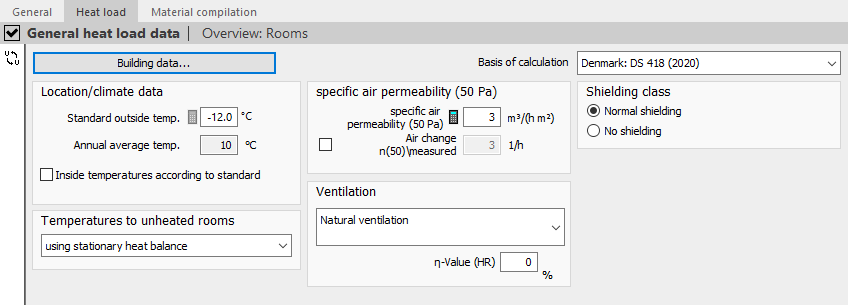

Heating load Linear Building

Procedure

Open the drop-down list under Ventilation and select a ventilation system.
Enter the efficiency η value (HR) for supply or exhaust air systems.

Results

The ventilation system for your project is selected and set.
